First introduced in 2012 and now in it’s 7th incarnation, the Meta-C MOPA fiber laser engraving machine is built for 24/7 use over decades, it has a track record of near zero failures over millions of flawless operations and features our latest 3D laser head (3-Axis).
| Beam Delivery | Laser Type | Power (W) |
| 3D (3-Axis) | MOPA Fiber | 30-80 |
State-of-the-art technology meets a straightforward interface. Built for performance-critical companies, the Meta-C is high-end industrial solution built for the rigors of a demanding environment. As one of the most feature-rich laser engraving machines in its class, it includes or own advanced ELI-X17 MOPA Fiber laser with a full x17 waveformsThe number of waveforms is a good indicator of versatility, what materials can be engraved and the effects a laser can a..., this makes it much more versatile in what it can mark. The more waveformsThe number of waveforms is a good indicator of versatility, what materials can be engraved and the effects a laser can a..., power configurations, Z-Axis accuracy and laser stability you have, the more options you have in what you can engrave.
Built for industrial and commercial operation, working around the clock, 24/7 for years on end. Our META range have a typical lifespan exceeding 15 years and counting.
Introducing our own ELI-X17 MOPA Fiber laser, with 30W-80W the Meta-C can make short work of most engraving tasks, whether you need to mark parts or a new range of products.
Featuring our 3-Axis (3D) head as standard. Mark curvatures on an object and achieve spectacular results at a fast pace, simply upload your 3D file to our software and start marking.
Take a look how the Meta-C Fibre stacks-up against typical industrial fibre solutions.
3D Capable: ✔
Warranty: 3-10 Years
Safety: Class 2 (CE Certified)In Class 2, a laser should be safe to use without protective equipment, but it must be CE Certified. Without this, the c..., P601 LEVUnder COSHH, Local Exhaust Ventilation (LEV) systems are legally required for businesses using Laser Engraving equipment...
Base Model Laser: 30W MOPA FibreA type of laser engraver that uses a Master Oscillator Power Amplifier (MOPA). They have adjustable pulse durations and ...
WaveformsThe number of waveforms is a good indicator of versatility, what materials can be engraved and the effects a laser can a...: 17
Working AreaWorking Area is almost entirely dependant on the attached lens and laser. However, with our conveyor and XY systems, thi...: 220x220mm
Max Part Size ClosedThe maximum length and depth of a part when operated in Class 2 (door closed). When in class 2, no safety equipment is r...: 700x380mm
Accuracy: 1µm (0.001mm)
Colour Marking: ✔
BR ProtectionBack Reflection Protection is critical for laser longevity if you plan to do deep engravings, especially metals as it pr...: ✔
Z-Axis StrokeRough indicator of the maximum part/project height - The Z-Axis is a mechanical vertical adjustment for the laser head. ...: 368mm
Positioning Speed: 10,000mm/s
Software: 3D, 4-Axis, Industry 4.0
Electronics: DLC (Siemens PLC)
Door Access: 180° Auto-Pneumatic
Average LifespanThe current average lifespan of installed equipment. Competitor figures are difficult to attain, so they are based on in...: 15 Years
3D Capable: ✘
Warranty: 2 Years
Safety: Class 2
Base Model Laser: 20W Q-Switch FibreA lower cost fiber laser that produces high-energy pulses at a low repetition rate. Not suitable for colour marking, and...
WaveformsThe number of waveforms is a good indicator of versatility, what materials can be engraved and the effects a laser can a...: 2-10
Working AreaWorking Area is almost entirely dependant on the attached lens and laser. However, with our conveyor and XY systems, thi...: 160x160mm
Max Part Size ClosedThe maximum length and depth of a part when operated in Class 2 (door closed). When in class 2, no safety equipment is r...: 600x300mm
Accuracy: 0.2mm
Colour Marking: ✘
BR ProtectionBack Reflection Protection is critical for laser longevity if you plan to do deep engravings, especially metals as it pr...: ✘
Z-Axis StrokeRough indicator of the maximum part/project height - The Z-Axis is a mechanical vertical adjustment for the laser head. ...: 295mm
Positioning Speed: 3,000mm/s
Software: 2D, 2-Axis
Electronics: LMC
Door Access: Front Load, Manual
Average LifespanThe current average lifespan of installed equipment. Competitor figures are difficult to attain, so they are based on in...: 2-5 Years
Perfect for branding and traceability. Whether it be metal, painted or coated car parts, aerospace components or tools.

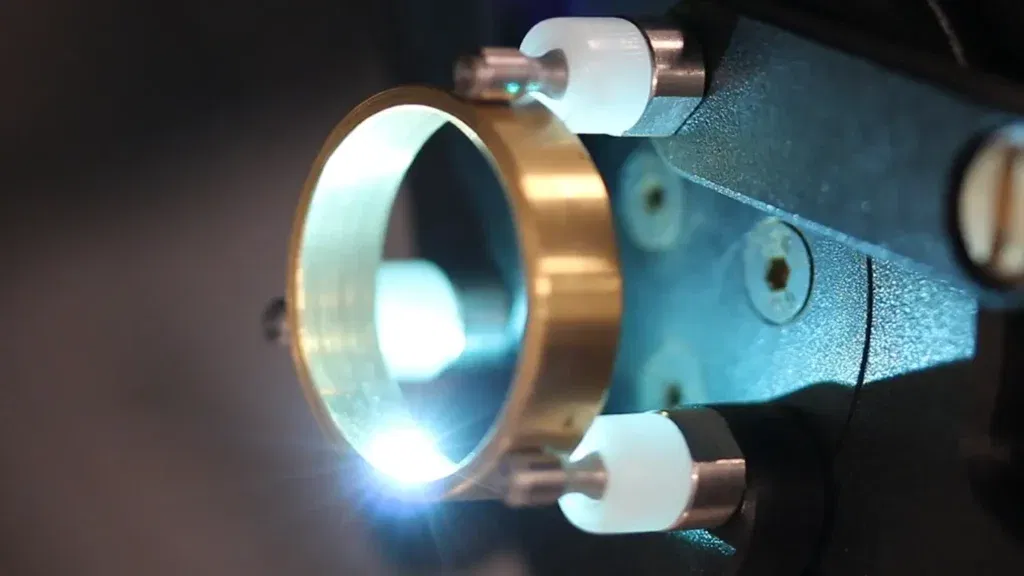

Engrave precious metals within seconds. Attach a rotary device, or opt for our 3-Axis for engraving around the circumference of a ring and more.
Ideal for marking phone cases, bottles, tech devices, medical tools, switches, electrical appliances and almost everything else.
Take personalisation to the next level. Easily engrave trophies, medals, fobs, wallets, keys, cup mats, pens and well, almost anything.
Fitted with our own ELI-X17 MOPA Fiber laser and our 3D laser head (3-Axis) for 10x faster marking of curved objects, the Meta-C Fiber is ready for anything.
Take a look at some of our application videos below of the Meta-C MOPA Fiber Laser Engraving Machine at work.
With 180° access you have no limit on part width or length. In Class 2 (door closed), the max part size is 700mm wide x 380mm deep.
The aluminium T-Slot worktable (350mm x 350mm) is built for a range of clip-in accessories and perfect, repeatable alignment of your parts.
Safety tested, pneumatically actuated access panel. Allowing fast hands free marking, with minimal noise and lower wear/tear operation.
We provide 1 interchangeable F254 lens, as standard, delivering a variation of focal lengths, working areas, and focal point sizes.
The Meta-C MOPA Fiber laser engraving machine is designed to speed up your production.
Built for industrial and commercial facilities, with a typical lifespan exceeding 15 years and counting. Compliant with CE, RoHSII, ISO9001 and FDA regulations.
Meta-C is built with Siemens PLC electronics and capable of operating in greater variations of temperature, humidity, and dust than most competing systems.
Created with the longest lifespan in mind, the laser boasts 100,000 hours typical MTBF (mean time before failure), the door is designed to handle 10,000’s cycles.
Built for abuse, will withstand knocks, scrapes and very heavy use. Constructed with military-grade aluminium, reinforced in key areas and can take the weight of a small truck. *
We are so confident in our design and build; we back it up with some of the longest warranties in the industry. Providing a 3-year global warranty as standard, extendable to 10 years or longer.
Automatic marking? No problem. The 3m conveyor feed makes the manufacturing process even easier.
A tilting rotary device makes marking around rings, bottles and other cylindrical items a breeze.
Our X-Axis add-on is perfect for batch marking 1000’s of smaller parts per hour, or larger parts in multiple locations.
Keep full control with a practical side window that allows you to see your creation from start to finish.
Our image recognition allows for precision marking exactly aligned to elements on your product, without manual intervention.
Our state-of-the-art range of integrated collaborative robots give you full flexibility and automation in your production line.
Available with a ultra-accurate output powers, beam characteristics and packed with performance enhancing features Meta-C is our flagship laser engraving, marking and cutting workstation. Meta-C is a powerhouse of a machine delivering the best performance and functionality in its class. It’s the ideal solution for those that require the ultimate performance and reliability to service high production demands.
Meta-C also comes with unrivalled connectivity to external devices such as robots and other forms of automated handling devices. Meta-C can be used with a wealth of automation systems and accessories to accelerate your business.
Designed, assembled, configured and tested in the UK to ISO9001 (2015), CE and RoHSII regulations, Meta-C is one of, if not the most feature enriched and functional laser marking workstations on the market today.
We choose very high grade components and really do take our time to build this model, which is reflected by the proven track record of near zero faults in the field across a large number of units installed. At this price point we feel that at time of publishing there really is no other system on the market to compete with this Meta-C laser engraving machine on a like for like basis…
Product Code |
MC30M |
Dimensions (WDH) |
790mm x 1175mm x 948mm |
Laser Source |
ELI-X17 MOPA Fiber (30W, 60W or 80W) |
Laser Head |
3D (3-Axis) |
3D Depth of Focus (DOF) |
35mm |
WaveformsThe number of waveforms is a good indicator of versatility, what materials can be engraved and the effects a laser can a... |
x17 |
Accuracy |
1µm (0.001mm) |
Positioning Speed |
10,000mm/s |
Z-axis StrokeRough indicator of the maximum part/project height - The Z-Axis is a mechanical vertical adjustment for the laser head. ... |
368mm |
Z-axis Accuracy |
±0.02mm |
DLC / Software |
Siemens PLC / Lotus Mark v3.0 |
International Warranty |
3 to 10 years |
Max Part Weight |
45kg |
Max Part Size (Door Closed) |
700mm x 380mm (Class 2) |
Max Part Size (Door Open |
Height Restricted Only (Class 4) |
Worktable |
350mm x 350mm (T-Slot Expandable) |
Marking Area (F160 lens) |
112mm x 112mm |
Marking Area (F254 lens) |
174mm x 174mm |
Marking Area (F330 lens) |
220mm x 220mm |
Rotary Max Part Diameter |
3D (3-Axis) |
Class |
Class 2 (CE Certified) |
Accessories Available |
Request Catalogue |
