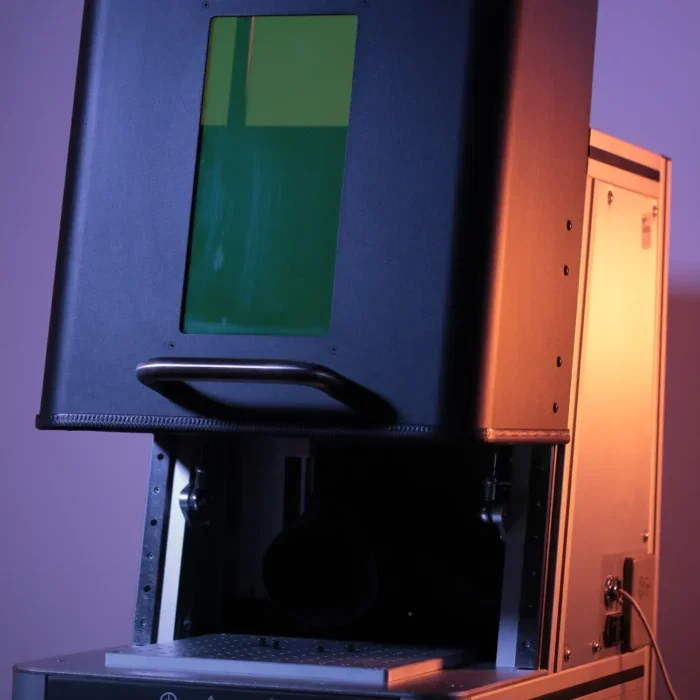

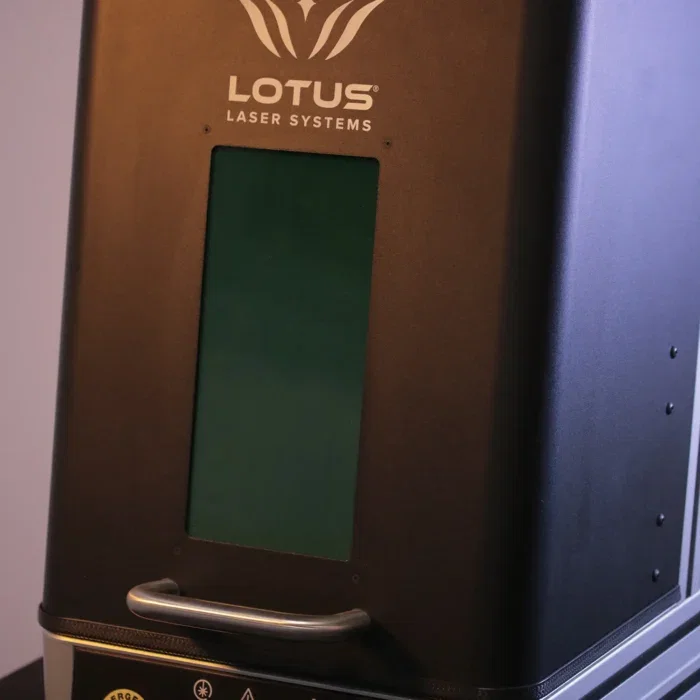

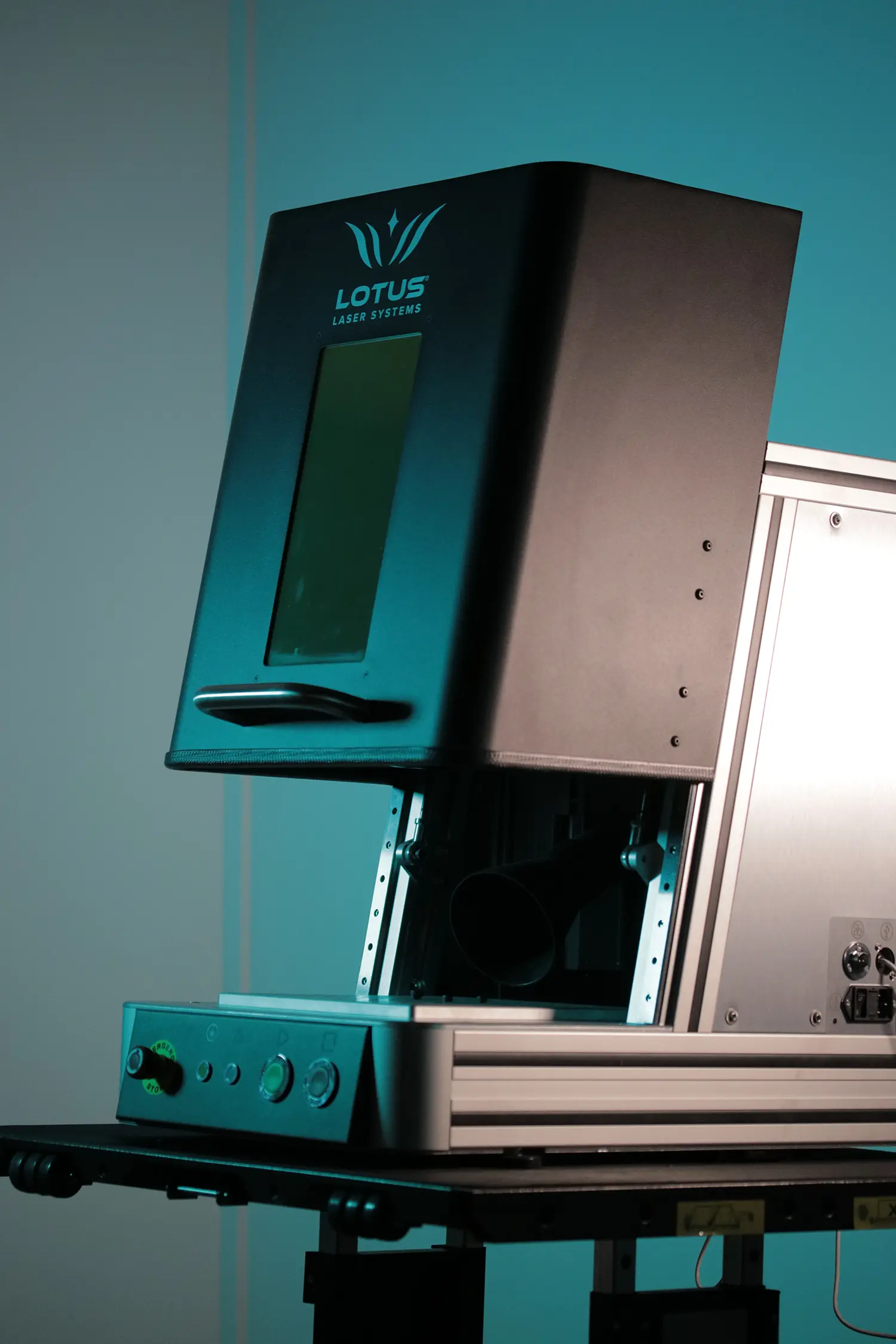

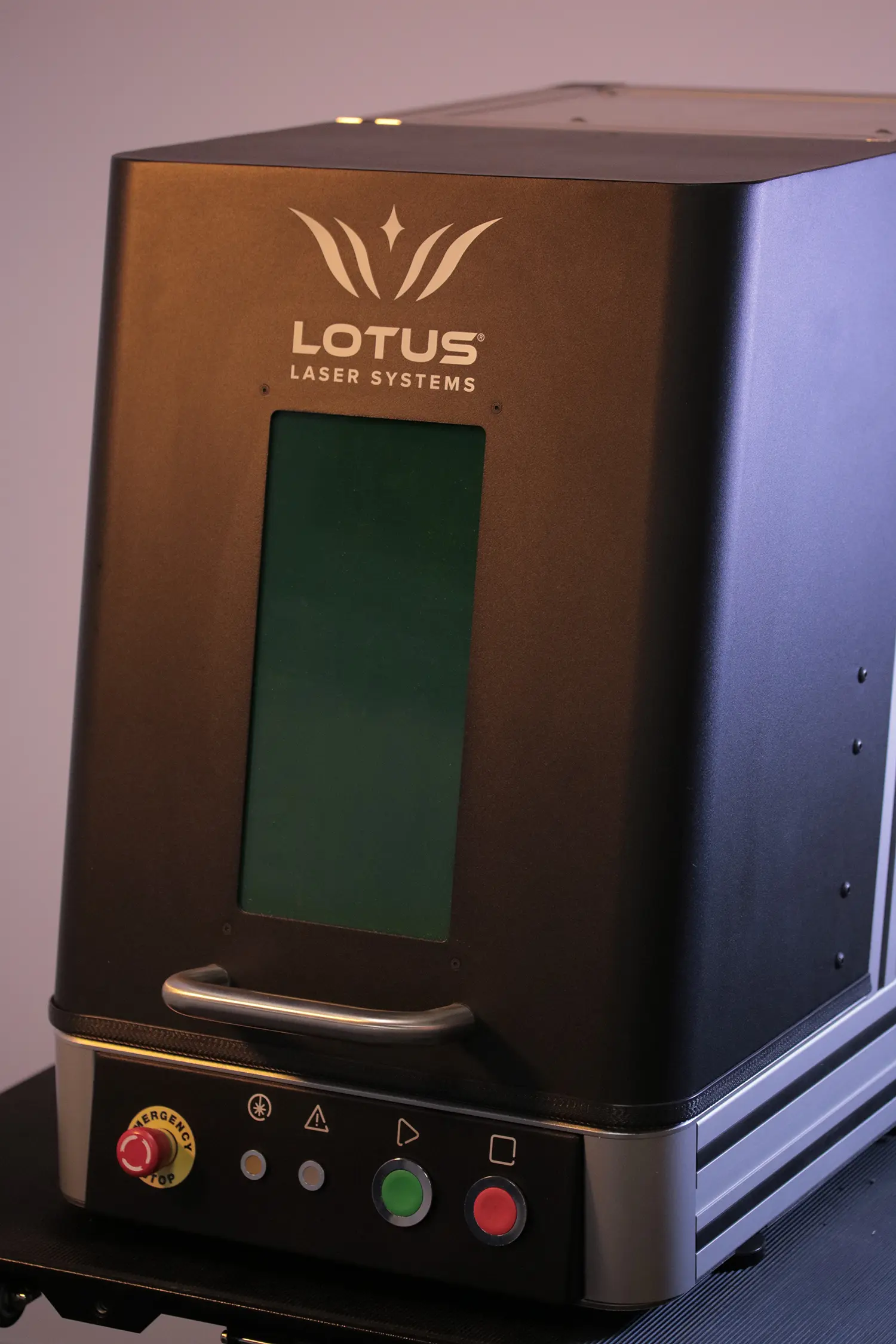

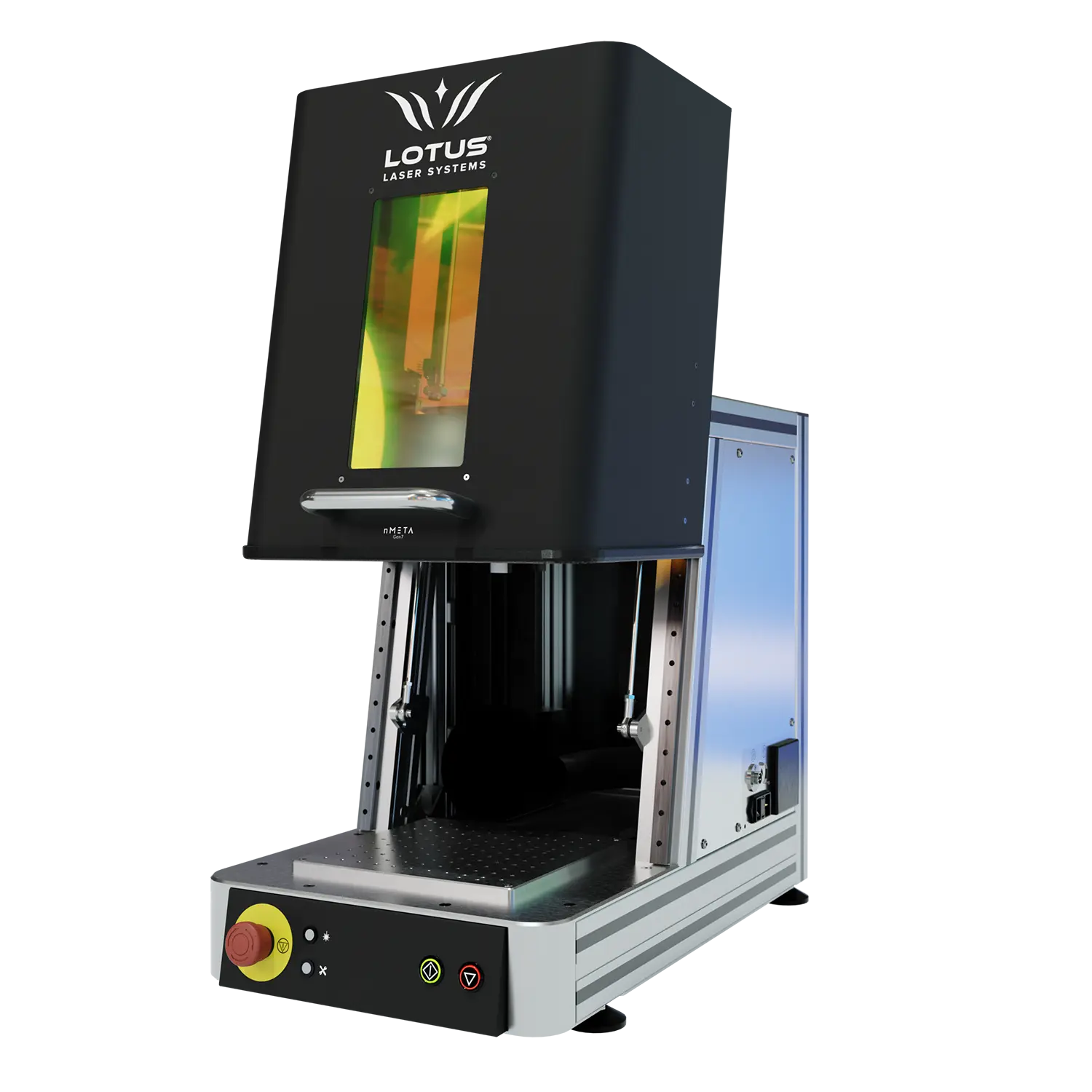

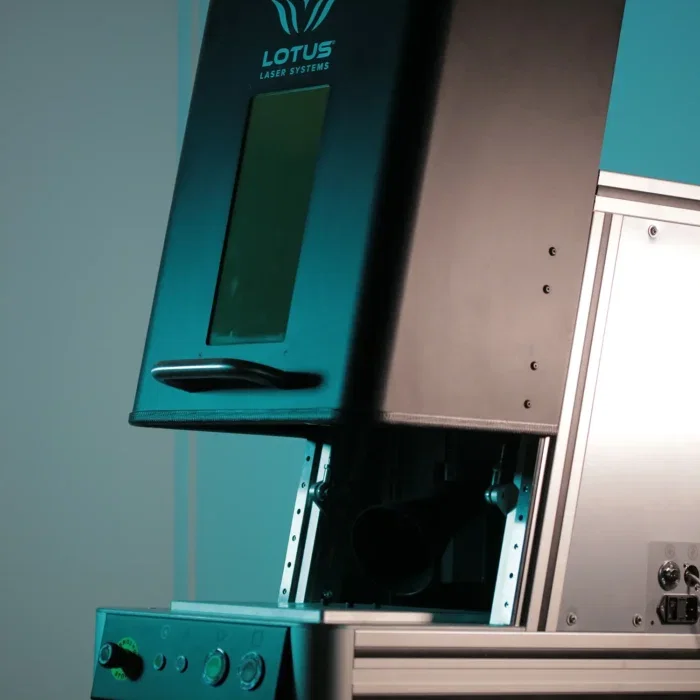

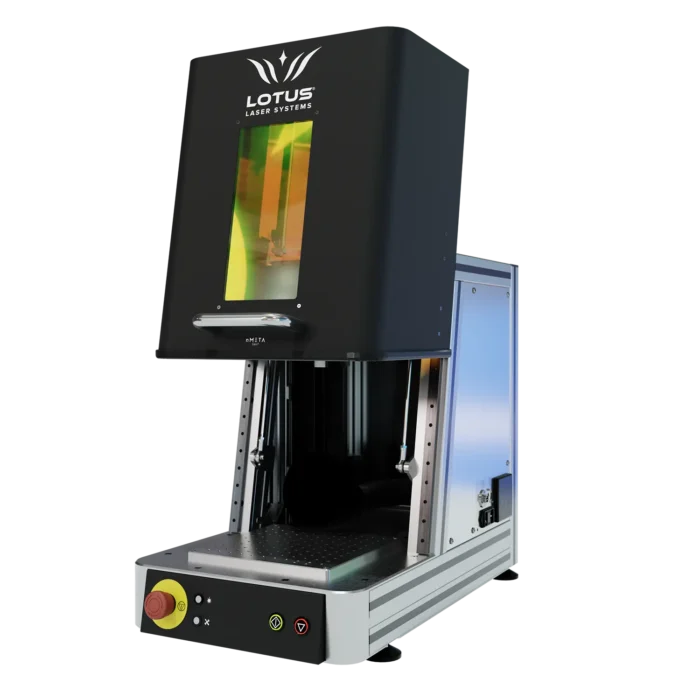

nMeta Desktop • Fiber Laser Engraver

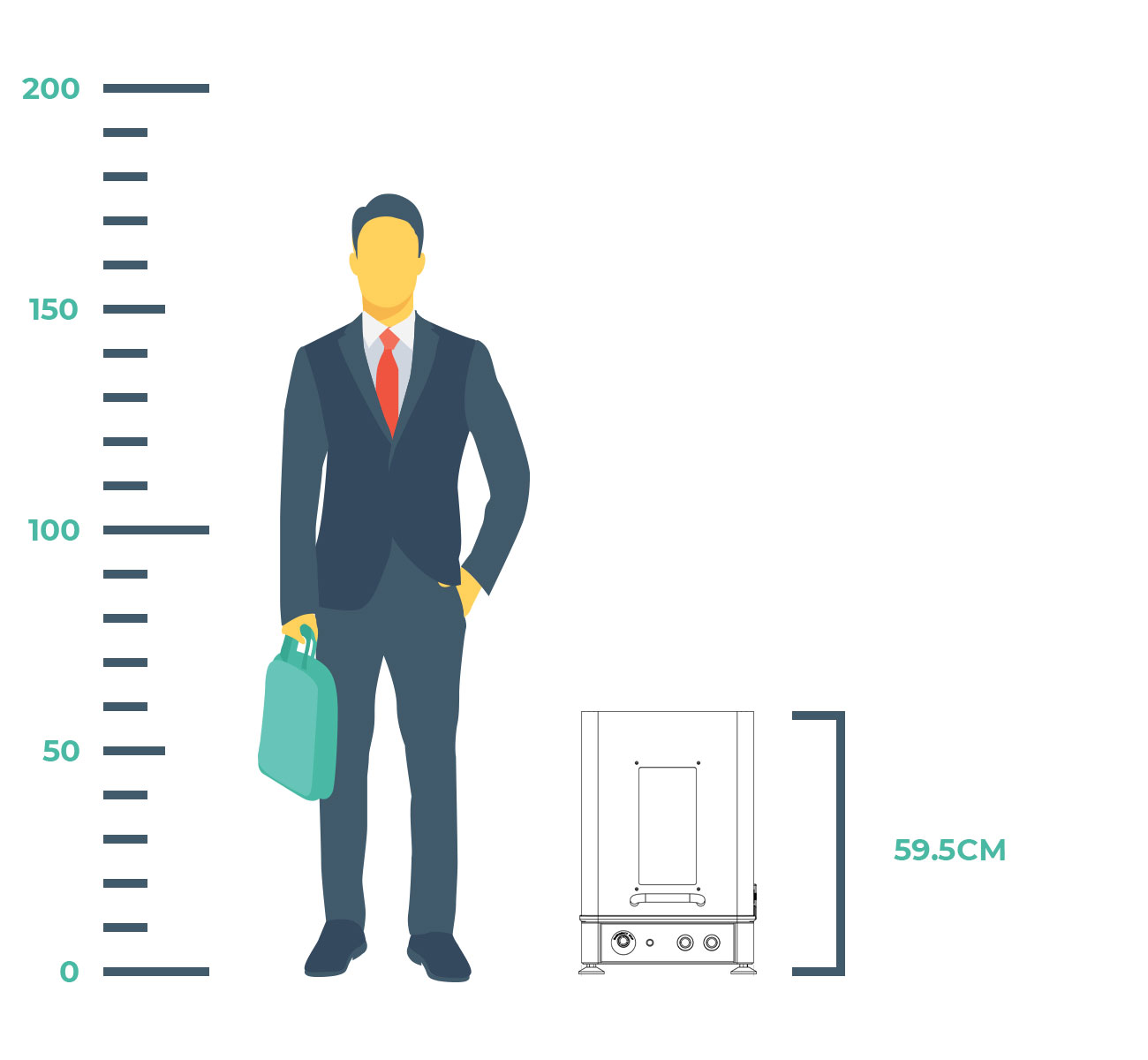

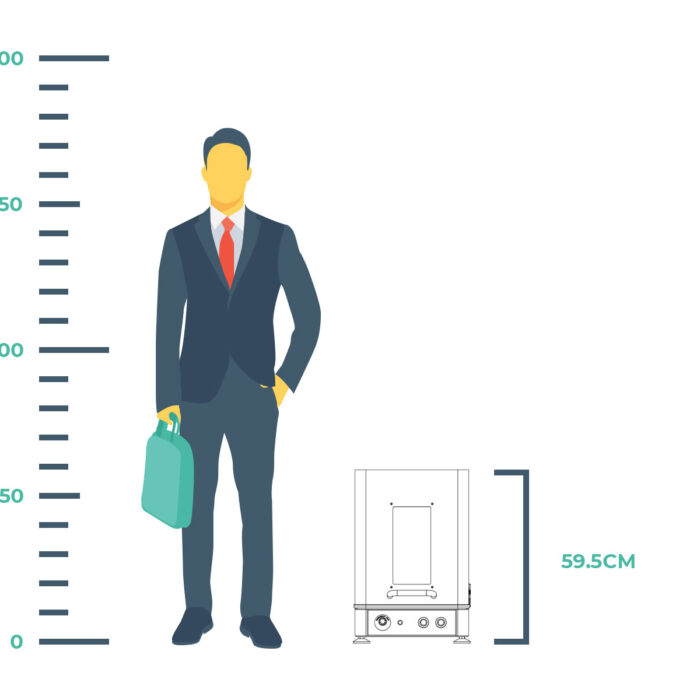

•  30% smaller footprint than industrial fiber laser engraving machines
•  Will fit on most work surfaces
•  Ideal for engraving metals and plastics in commercial environments

Power (W): 30
Worktable (mm): 250 x 250
Materials: Most Metals, Stone, Some Plastics

Talk to a Specialist

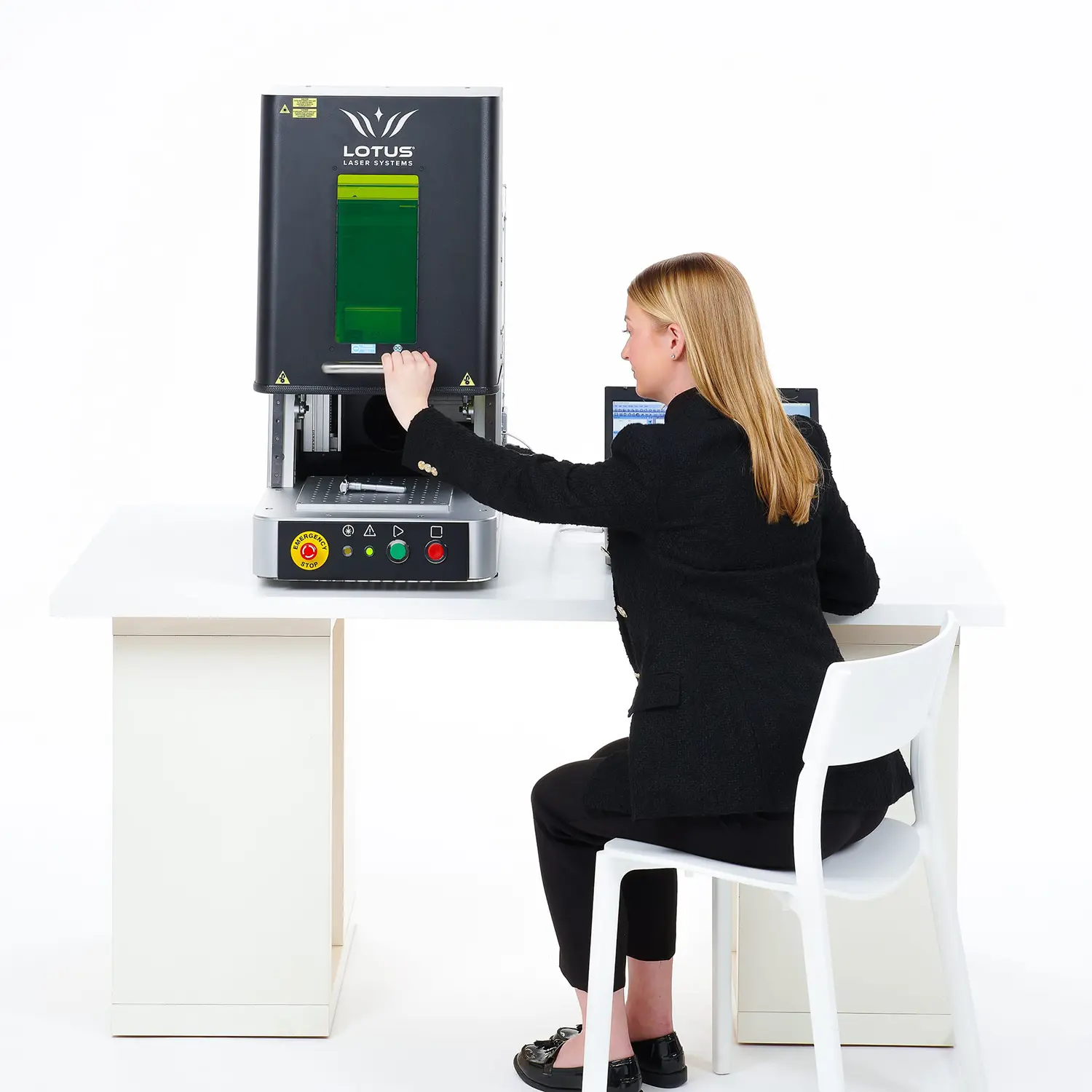

The Desktop fiber laser engraver

Sleek. Compact. Easy.

Jobs take just a few clicks to set-up and a few seconds to complete.

Industry 4.0 Software

With 3D and 4-axis support, send graphics, or setup more advanced marking jobs quickly and efficiently. Our laser engraving software makes it easy to operate your machines, find out more.

ELI-X17 30W Fiber Laser

Boasting our own ELI-X17 30W MOPA Fiber laser, the nMeta desktop MOPA fiber laser engraver boasts 17 waveforms and back-reflection perfect for jewelry and most products.

Programmable Z-Axis

The nMeta desktop fiber laser engraver’s programmable Z-axis provides quick and simple job set-up. Mark objects at multiple heights (7.87 inches max) in a single marking or engraving job.

Jewelry

Engrave gold, silver, platinum, or titanium jewelry within seconds. Attach a rotary device for engraving around the circumference of a ring and more.

Engineering

Perfect for almost all engineered parts; whether it be metal, painted or coated car parts, aerospace components or tools.

Products

This desktop laser fiber laser engraver is ideal for marking phone cases, bottles, tech devices, medical tools, switches, electrical appliances and almost everything else.

Giftware

Take personalization to the next level. Easily engrave trophies, medals, fobs, wallets, keys, cup mats, pens and well, almost anything.

Laser Engraver

Freedom

Fitted with a fiber laser source and available with a rotary you can use the nMeta MOPA fiber laser engraver for personalization, identification or branding.

Desktop Laser Engraving Machine

Videos

Just some of the kind of materials that can be engraved with a MOPA fiber desktop laser engraving machine are shown below.

Gold Jewellery Rotary Laser Engraving

Jewelry ENGRAVING

The nMeta is perfect for engraving jewelry and precious metals. Find out more

Good Empire interview with Lotus Laser

PERFECT FOR EVENTS

Good Empire use a nMeta for events, producing bespoke products for thousands of customers

180° Work Area

Easily set up and position parts with full 180° access (far easier than trying to get your hands through a single front facing door).

Quick-Align Table

A precision cut 9.84 inches x 9.84 inches aluminum breadboard sports a grid of 11×11 M5x10mm holes for quick jig and accessory alignment.

Pneumatic Door

Designed with safety in mind, the nMeta is class-2 and locks your work safely away during the marking process.

Interchangeable Lenses

A selection of interchangeable F-theta lenses delivers a variation of focal lengths, working areas, and focal point sizes.

Nmeta Desktop Fiber

Features

With great features to make life easier, the nMeta fiber laser engraver will have you marking in seconds.

Industrial-Grade

Durability.

The nMeta desktop laser engraving machine is built for demanding environments and designed to last for a lifetime. Compliant with CE, RoHSII, ISO9001 and FDA regulations.

Harsh Environments

We certainly don’t cut any corners, the nMeta desktop laser engraving machine is built with Siemens PLC electronics and capable of operating in greater variations of temperature, humidity, and dust than most other systems.

Insane Endurance

Created with the longest lifespan in mind, the nMeta MOPA fiber laser engraver boasts 100,000 hours typical MTBF (mean time before failure), the door is designed to handle 10,000’s cycles.

Solid Chassis

nMeta desktop laser engraving machine will withstand knocks, scrapes and very heavy use, then keep working all day long. Built with military-grade aluminum, intelligently reinforced and could take the weight of a small truck. *

Long Warranty

We are so confident in our design and build; we back it up with some of the longest warranties in the industry. Providing a 3-year global warranty as standard, extendable to 10 years or longer.

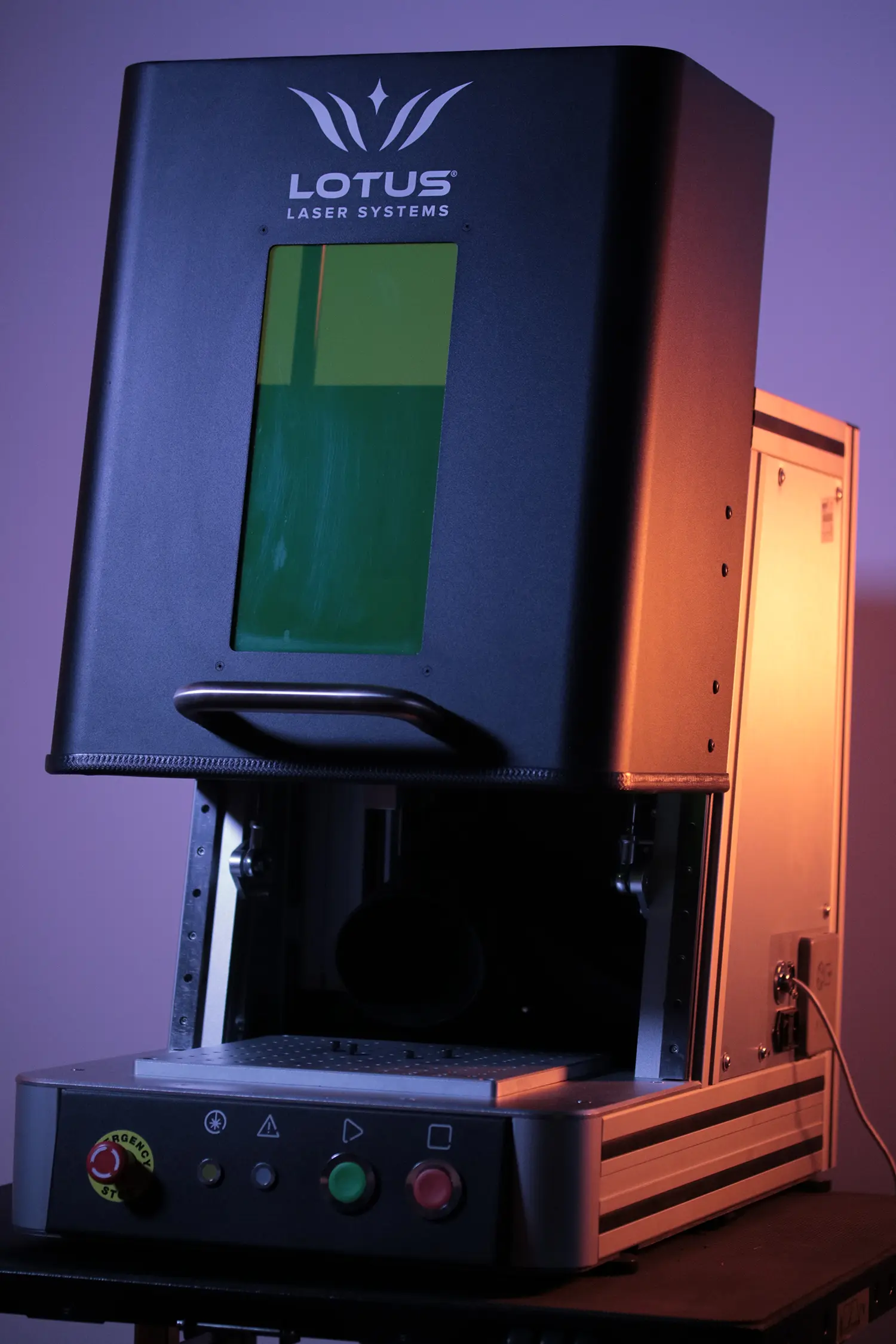

nMeta Fiber Laser Engraver

Upgrades.

Rotary Device

Engrave around the circumference of rings, parts and more.

Industrial Extraction

Easily hook-up a BOFA extractor unit for hygenic environments.

nMeta MOPA Fiber

Specification

Designed, assembled, configured, and tested in the UK. Compliant with CE, RoHSII, ISO9001 and FDA regulations, the nMeta desktop laser engraving machine is an ultra-compact desktop laser engraver with exceptional functionality and durability.

We choose very high-grade components and really do take our time to build this model, which is reflected by the proven track record of near zero faults in the field across many units installed. At this price point we feel that at time of publishing there really is no other system on the market to compete with this nMeta desktop laser engraving machine on a like for like basis…

nMeta Desktop Fiber Laser Engraver Blueprint

Specification

Product Code
NM30M
Dimensions (WDH)
15.55 inches x 23.43 inches x 28.54 inches
Laser Source
ELI-X17 MOPA Fiber (30W)
Waveforms
x17
Accuracy
1µm (0.001mm or 25,400DPI)
Positioning Speed
10,000mm/s
Z-axis Stroke
7.87 inches
Z-axis Accuracy
±0.02mm
DLC / Software
Siemens PLC / Lotus Mark v3.0
International Warranty
3 to 10 years
Accessories Available
Request Catalog
Max Part Weight
30kg
Max Part Size (Door Closed)
13.78 inches x 10.24 inches
Max Part Size (Door Open)
N/A (Class 2 Only)
Worktable
9.84 inches x 9.84 inches (Breadboard)
Marking Area (F160 Lens)
4.41 inches x 112xmm (Max height: 4.13 inches)
Marking Area (F100 Lens)
2.76 inches x 2.76 inches (Max height: 7.09 inches)
Rotary Max Part Diameter
5.71 inches
Class
Class 2 (CE Certified)
Machine Weight
50kg

* Some figures can vary based on the application, please contact us for clarification.
