Meta-XY XL UV • Laser Part Marking Machine

•  Lotus quality on a larger scale – 1000 x 600mm work area
•  Designed for marking large-format parts and panels with accuracy
•  Powerful and versatile solution for industrial applications

Power (W): 5, 10, 15
Worktable (mm): 1000 x 600
Materials: Almost Everything
Machine Pricing Talk to a Specialist

Large-Area 3-Axis Laser Marking System

Designed for Scalable Precision

The Meta-XY XL retains all the benefits of the original Meta-XY system but with an expanded footprint to accommodate larger components and batch runs. Whether you’re applying traceability codes, logos, or detailed graphics onto metal, plastics, composites, or coated materials, the XL’s precision motion control and modular architecture allow for seamless integration into your workflow.

This machine is particularly well-suited to industries where marking on panels, enclosures, or multiple parts simultaneously is required. It delivers high-resolution results at speed, without compromising repeatability or durability.

3D Laser Marking

Equipped with 3-axis technology, the Meta-XY effortlessly marks flat, curved, and irregular surfaces with pinpoint accuracy. This makes it the ideal laser part marking machine for industries requiring deep engraving, branding, or traceability on complex components.

5W, 10W or 15W

The Meta-XY XL UV is available with a 5W, 10W or 15W UV laser, making short work of the most intricate marking and engraving tasks. Whatever material you’re working with, this versatile system provides optimal results with high-speed precision, beating almost any other system hands-down

Precision XY-Axis

The Meta-XY XL features a fully automated, large-format XY table, designed for batch processing and high-throughput applications. This system enables precise positioning across a wide marking area, allowing multiple parts to be processed in a single cycle without manual intervention.

3-Axis Motion System.

The Meta-XY XL is engineered with a true 3-axis motion system, making batch part marking faster, easier and more accurate than ever. This means that no matter where your part is placed on the bed, the full range of motion means the machine can mark it with extreme accuracy, every time.

Large parts, multiple small parts, irregular shapes… the Meta-XY XL can handle it all.


The laser head moves along the X and Z axis…


…while the T-slot table moves along the Y axis for a full 3 axis of movement.

What a difference 3D makes…

True 3D Engraving

Meta-XY XL dynamically adjusts focal depth using a high-precision 3-axis scanner, maintaining micron-level focus even on steep or recessed surfaces. Whether engraving deep branding marks or micro text, every line remains consistent and true.

*Grab the slider below to compare typical 2D engraving and Lotus 3D engraving.

3D Engraving with Lotus Lasers

Typical 2D Laser

3D Engraving with Lotus Lasers

Meta 3D Laser

WHAT CAN YOU ENGRAVE WITH A 3D FIBER LASER?

Applications & Videos

Explore the Meta-XY XL in action. Watch our demonstration videos to see how this laser part marking machine delivers high-speed automation, precise marking, and perfect contrast on a variety of materials. See real-world applications across aerospace, automotive, and industrial manufacturing.

Meta-XY XL Large Format Laser Engraving Machine

HUGE WORK AREA

The incredible 1000mm x 600mm work area of the Meta-XY XL makes it ideal for part marking

Lotus Meta-XY Custom Software

CUSTOM SOFTWARE

Our custom software makes it easy to completely automate your part marking process

Meta-C 3D Engraving

GET 3D MARKING – ON ALL PARTS

Using a Meta-XY XL means true 3D marking across all your parts. Learn how it works.

Examples

See how our UV laser marking & engraving machines deliver high-precision results on glass, plastic, metal, and more. From fine detail to heat-free engraving, these real-world examples show the power of 3D UV marking across key industries.

Wood – Clean, high-contrast surface marking

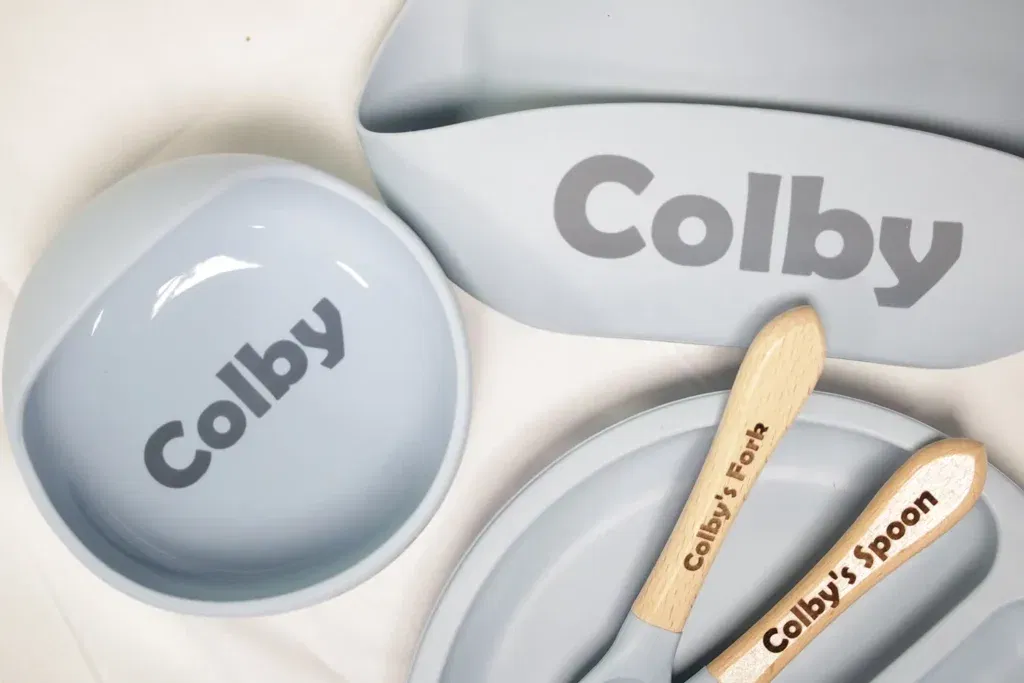

Lotus UV Laser Marked Silicone

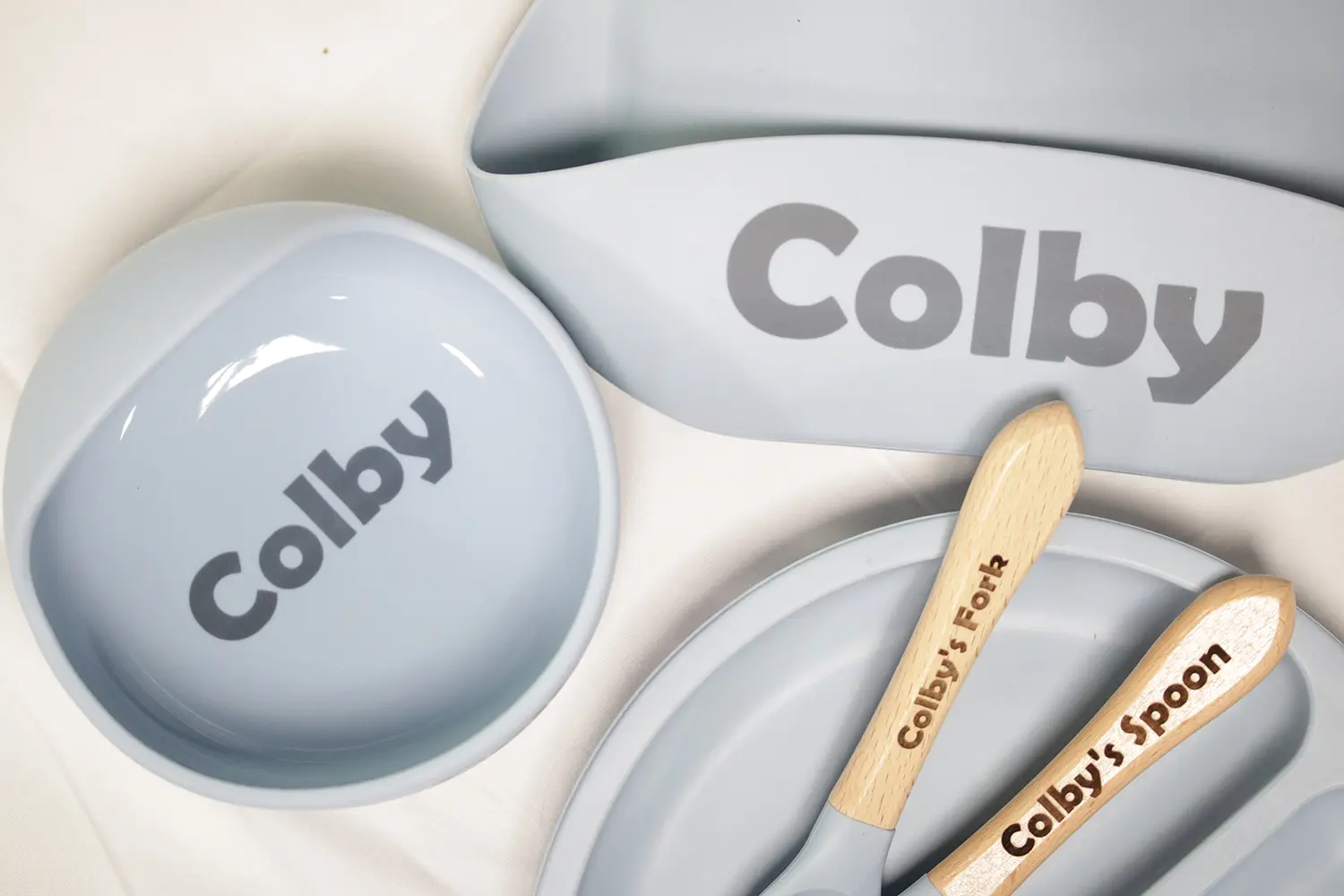

Silicone - Precise, permanent marks with no surface damage or warping.

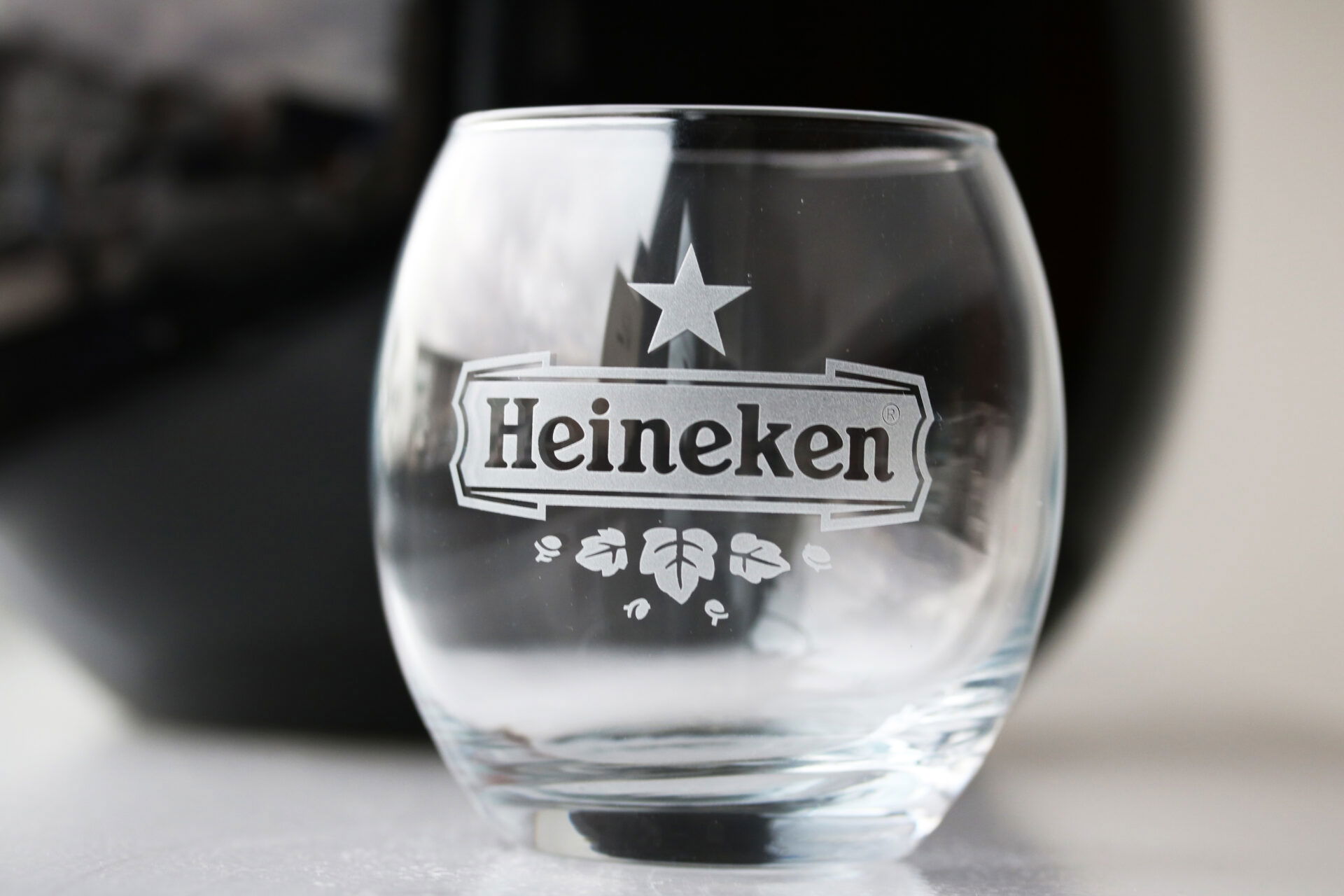

Glass – Frosted, micro-crack-free results ideal for branding.

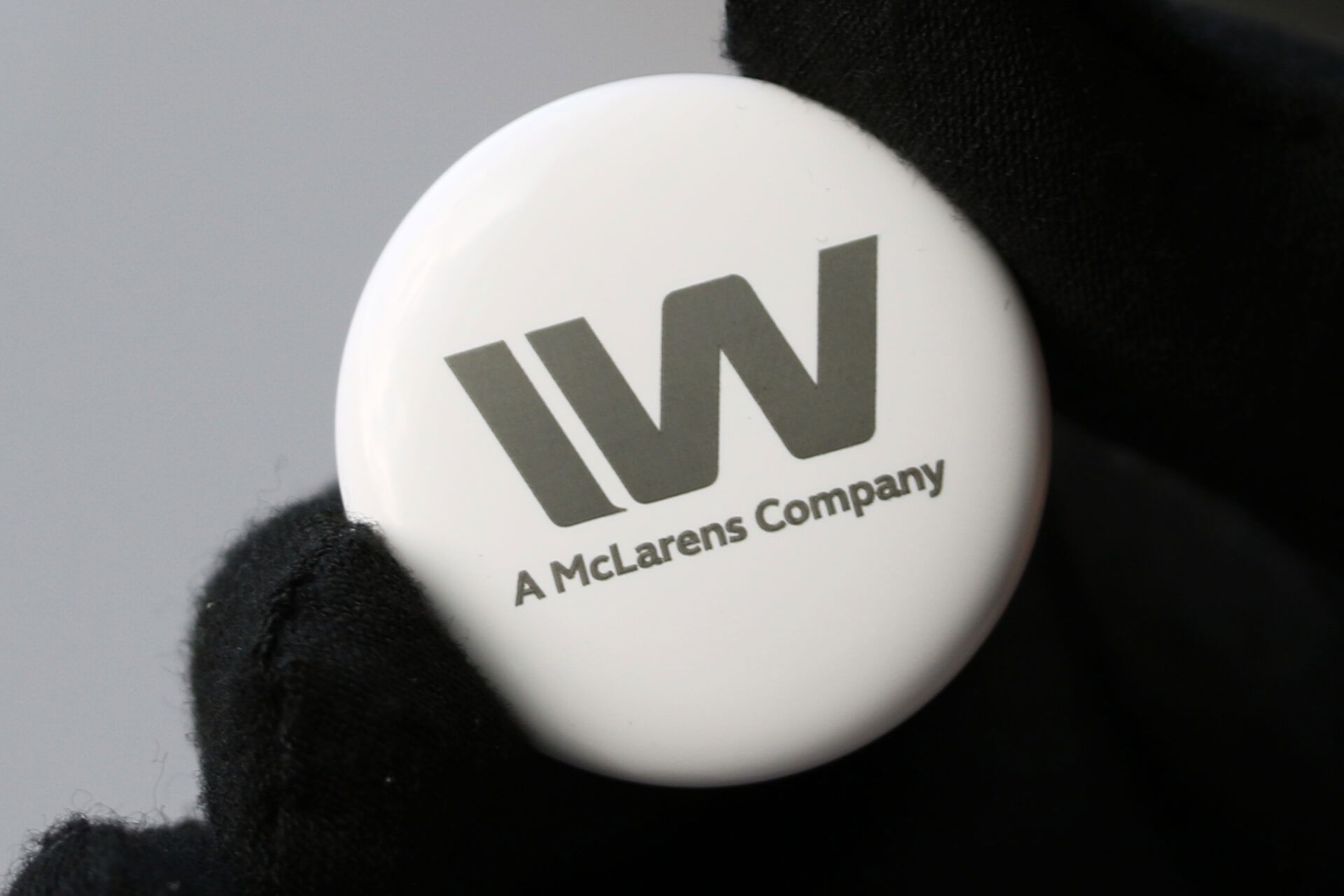

ABS - Crisp, high-resolution codes with no melting or deformation.
Lotus UV Laser Marked Silicone

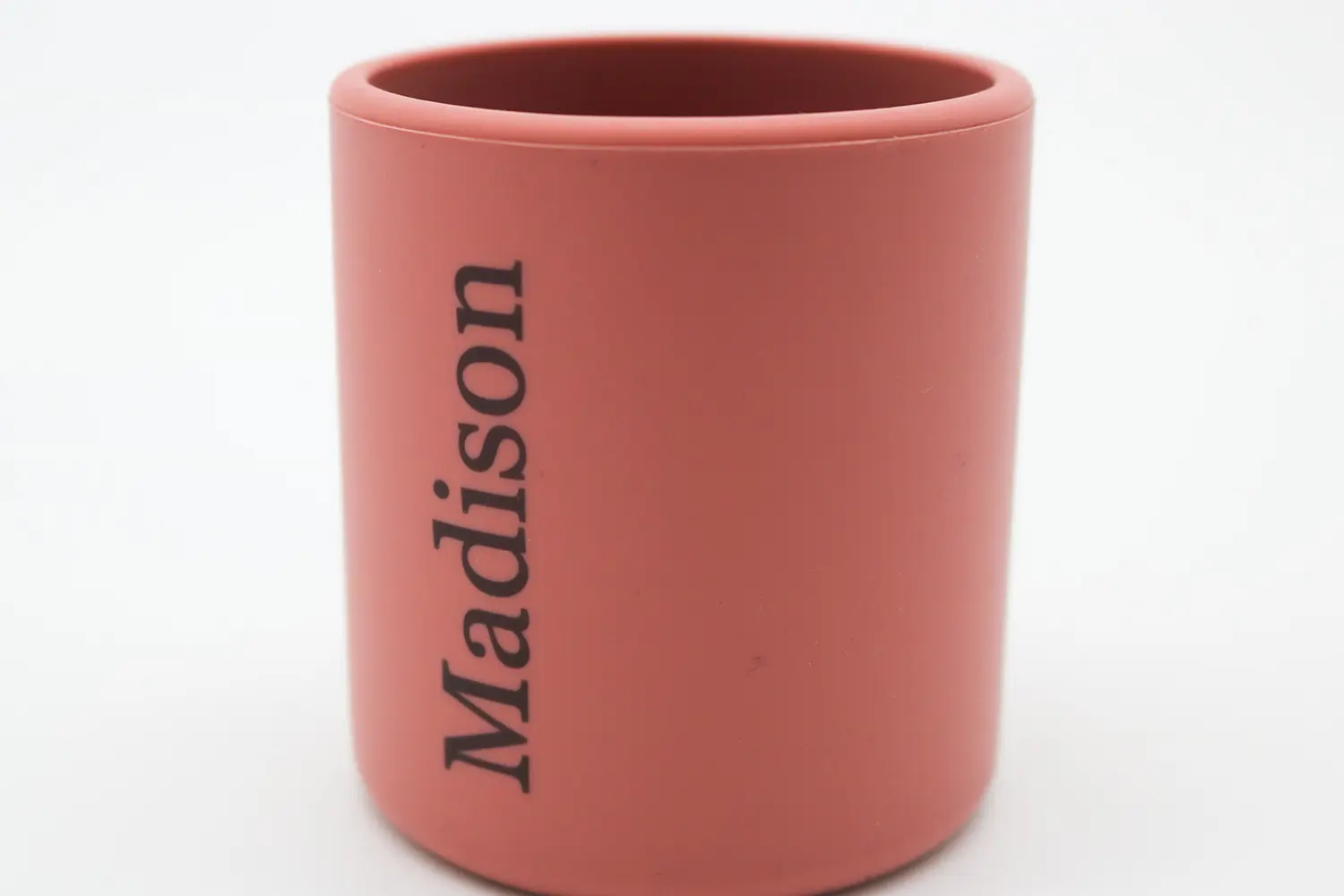

Food Safe - Mark with no ablation and a clear finish.

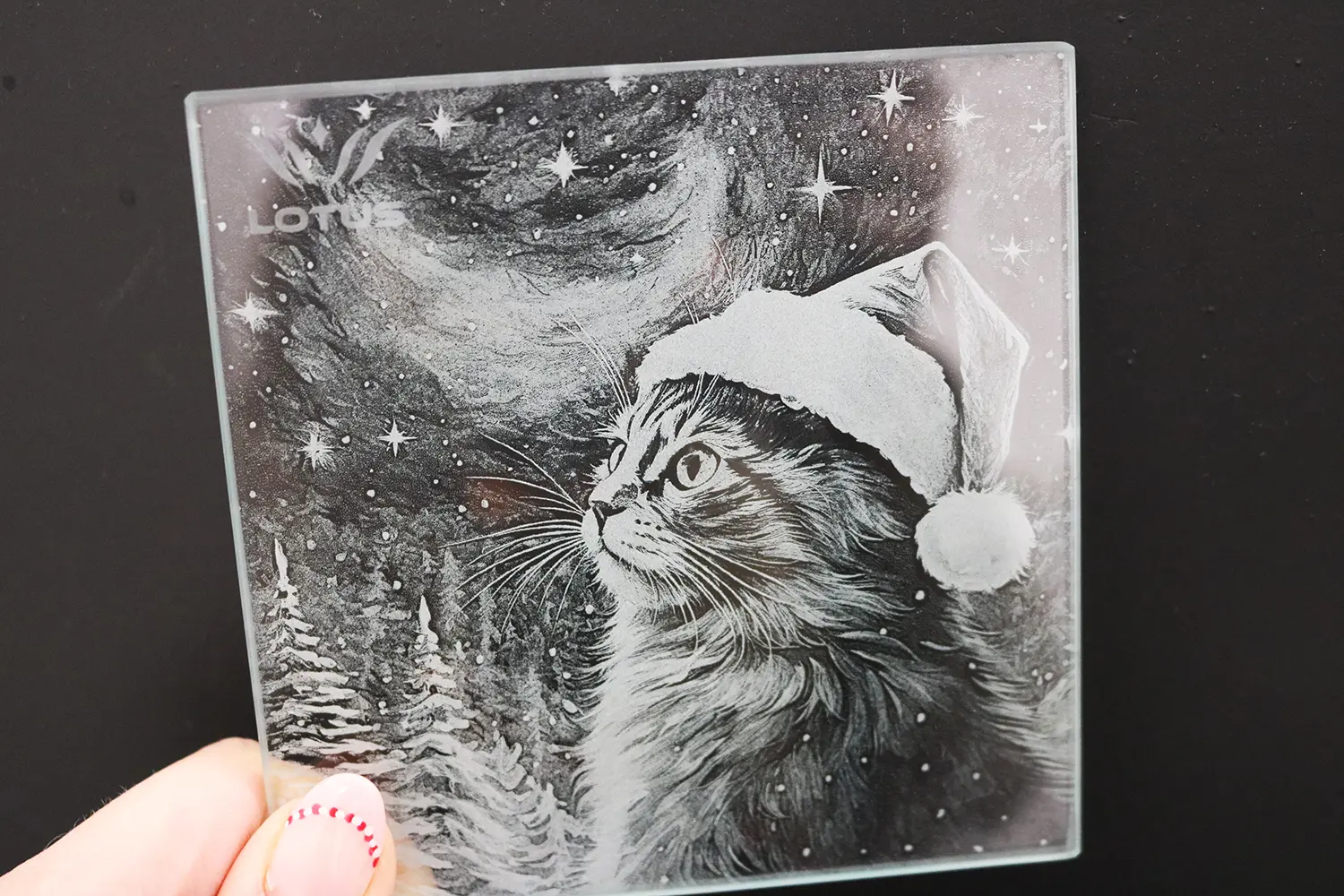

Laser Engraved Decorative Glass Coaster

Photo Engraving - Flawless photo engraving on glass.

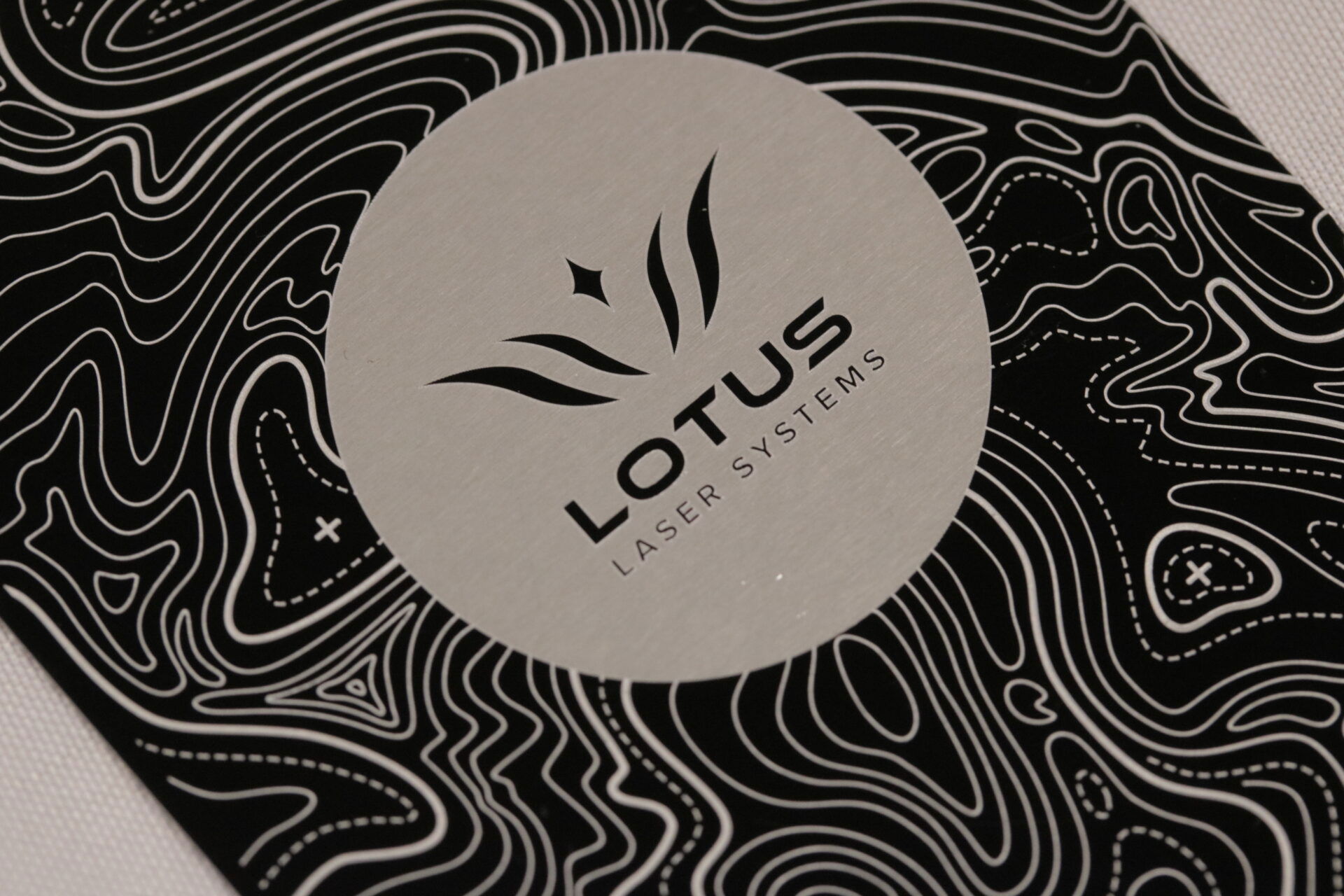

Branding- Mark any metal from titanium to copper.

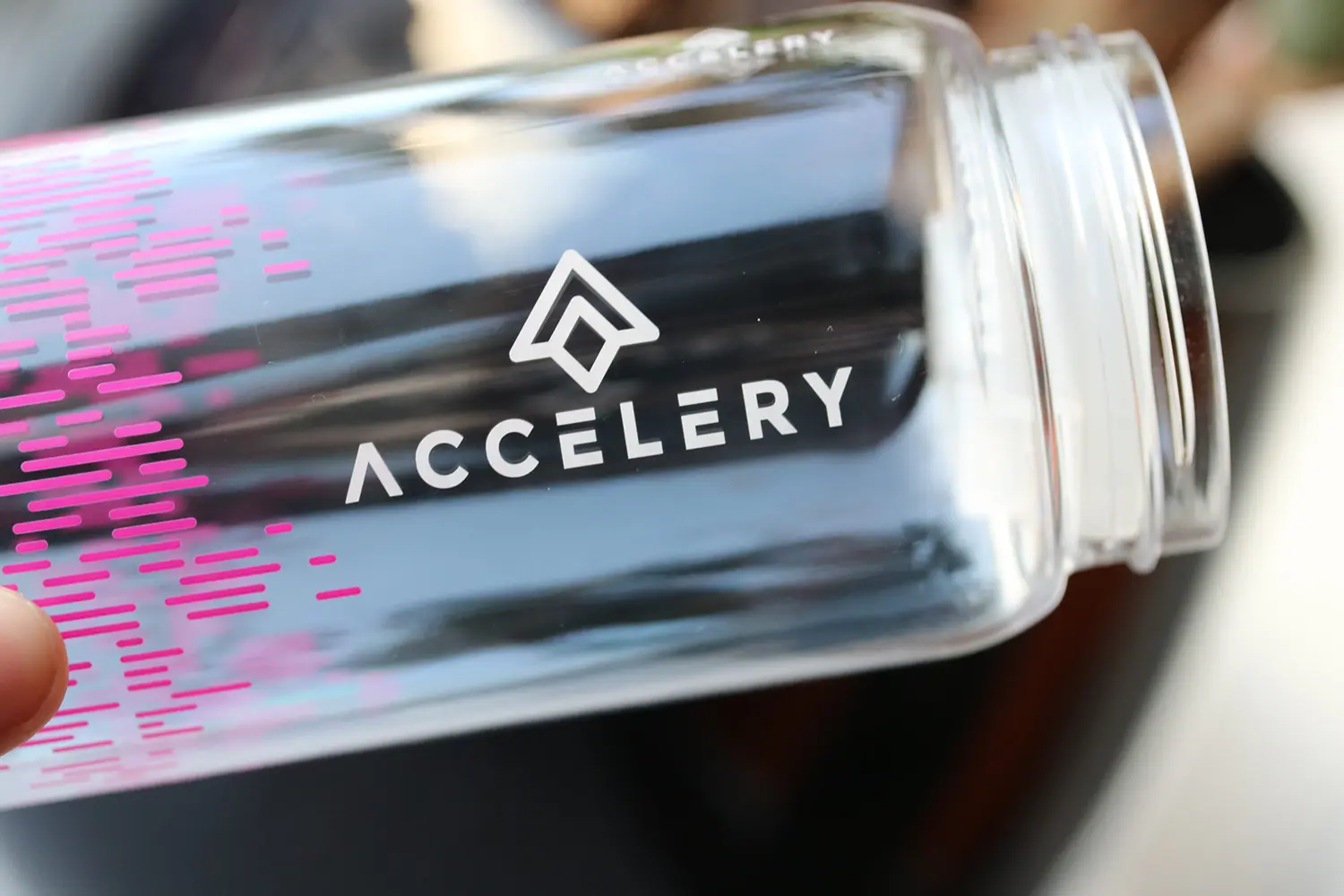

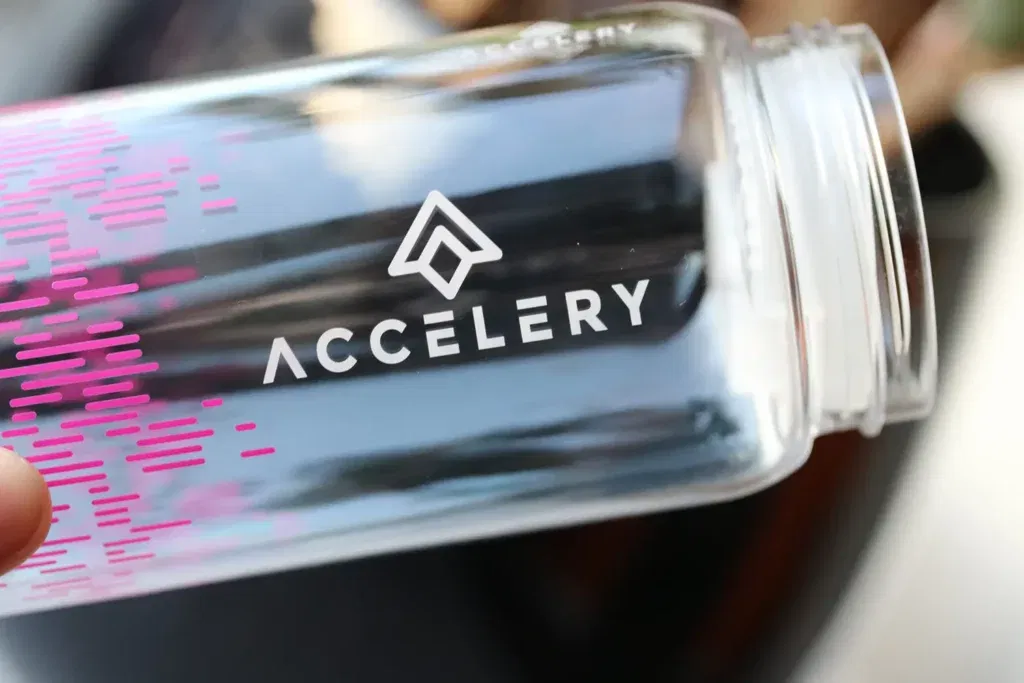

laser marked Tritan plastic

Tritan™ - Sterile, food-safe marking with no deformation.

TIme-Saving

Features

From its 180° access door for effortless loading to 24/7 operation and an intuitive Job Control HMI, every aspect of the Meta-XY XL is engineered for laser marking parts or projects a breeze.

180° Work Area

With 180° access you have no limit on part width or length. In Class 2 (door closed), the max part size is 700mm wide x 380mm deep.

T-Slot Worktable

The precision-engineered aluminium T-slot work table allows for quick installation of jigs, fixtures, and modular add-ons. Designed for repeatability and efficiency, it ensures perfect positioning of parts for every marking cycle.

Automatic Door

Class 2 verified, safety tested, pneumatically actuated access panel. Allowing fast hands free laser engraving and marking.

Job Control HMI

The Meta-XY XL’s Job Control HMI provides an intuitive user interface for managing marking parameters, automation sequences, and job queues. Operators can easily configure tasks, adjust settings, and monitor operations in real time.


Industrial-Level

Durability.

Robust and versatile, the Meta-XY XL large-format laser marking machine is built for both commercial and industrial sectors and boasts an incredibly long lifespan exceeding 15 years. Compliant with ISO9001, CE, RoHSII, and FDA regulations.

Harsh Environments

Incorporating top-of-the-range Siemens PLC electronics, each Meta-XY XL gets 3 full days of alignment and testing after leaving production. It’s designed to operate effortlessly in greater variations of dust, temperature and humidity than other systems.

3-10 Year Warranty

We’re so confident in our technology we back it up with some of the longest warranties in the industry. The Meta-XY XL comes with a 3-year warranty as standard, extendable to 10 years.

Insane Endurance

We take your business seriously, that’s why the Meta-XY XL is created with the longest lifespan in mind. Featuring an ergonomic pneumatic door which can withstand 100,000s cycles – you’ll struggle to find a more durable system than this.

Solid Chassis

Strong, durable and built to last. Our Meta-XY XL is robust in it’s makeup, made with military-grade aluminium it operates with full functionality even after knocks and heavy use.

Meta-XY XL

Modular & Future-Proof

Like all our Meta range systems, the Meta-XY XL is fully modular. Whether you need to upgrade the laser source, integrate vision alignment, or add a rotary device later, this machine has been designed to adapt with your business over time.

Choose from a wide selection of lens options, safety features, and hardware modules to build a system tailored to your workflow.

Conveyors

Streamline production with conveyor integration, perfect for high-speed manufacturing lines requiring efficient part flow.

Rotary Systems

Achieve precise cylindrical marking with a rotary axis, ideal for engraving rings, tubes, and round components.

Custom Jigs

Quickly swap out custom jigs for different part geometries, ensuring perfect repeatability and alignment.

Hopper Systems

Automate batch processing with a hopper system, feeding parts into the marking area with precision for high-volume runs.

Collaborative Robots

Enhance automation with a cobot for seamless part handling, reducing manual workload and increasing throughput.

Meta-XY batch laser marking machine

Summary.

The Meta-XY XL offers industrial-grade laser marking performance in a larger format—perfect for manufacturers and workshops looking to process bigger parts or increase productivity through batch marking.

With modular build options, flexible laser source configurations and UK manufacturing at its core, the Meta-XY XL is a robust long-term investment in scalable marking technology.

META-XY batch laser marking machine

Specification

The Meta-XY XL Large-Format laser marking machine is one of the most feature enriched and functional laser marking workstations available today. Designed, assembled, configured and tested here in the UK, it is compliant with CE, RoHSII, ISO9001 and FDA regulations.

In production we take our time, and most importantly we don’t cut corners. By choosing high-grade components and testing rigorously, we can confidently say, at this price point, we feel there really is no other system on the market to compete with the Meta-XY XL.

In Detail

Dimensions (WDH) 1452 x 1890 x 1893
Laser Source

ELI-355 UV
Laser Head 3D (3-Axis)
3D Depth Of Focus (DOF) 35mm
Waveforms Variable
Accuracy 1µm (0.001mm)
Positioning Speed
 10,000mm/s
Z-axis Stroke
 400mm
Z-axis Accuracy
 ±0.02mm
DLC / Software Siemens PLC / Lotus Mark v3.0
International Warranty 3 to 10 years
Max Part Size (Door Open) Height Restricted Only (Class 4)
Worktable
 1000mm x 600mm (T-Slot Expandable)
Accessories Available
 Request Catalogue

How much will a solution cost?

Use the slider below to get the approximate cost of one of our systems based on the number of products you need to mark or engrave.
Parts/Products per week: 500
