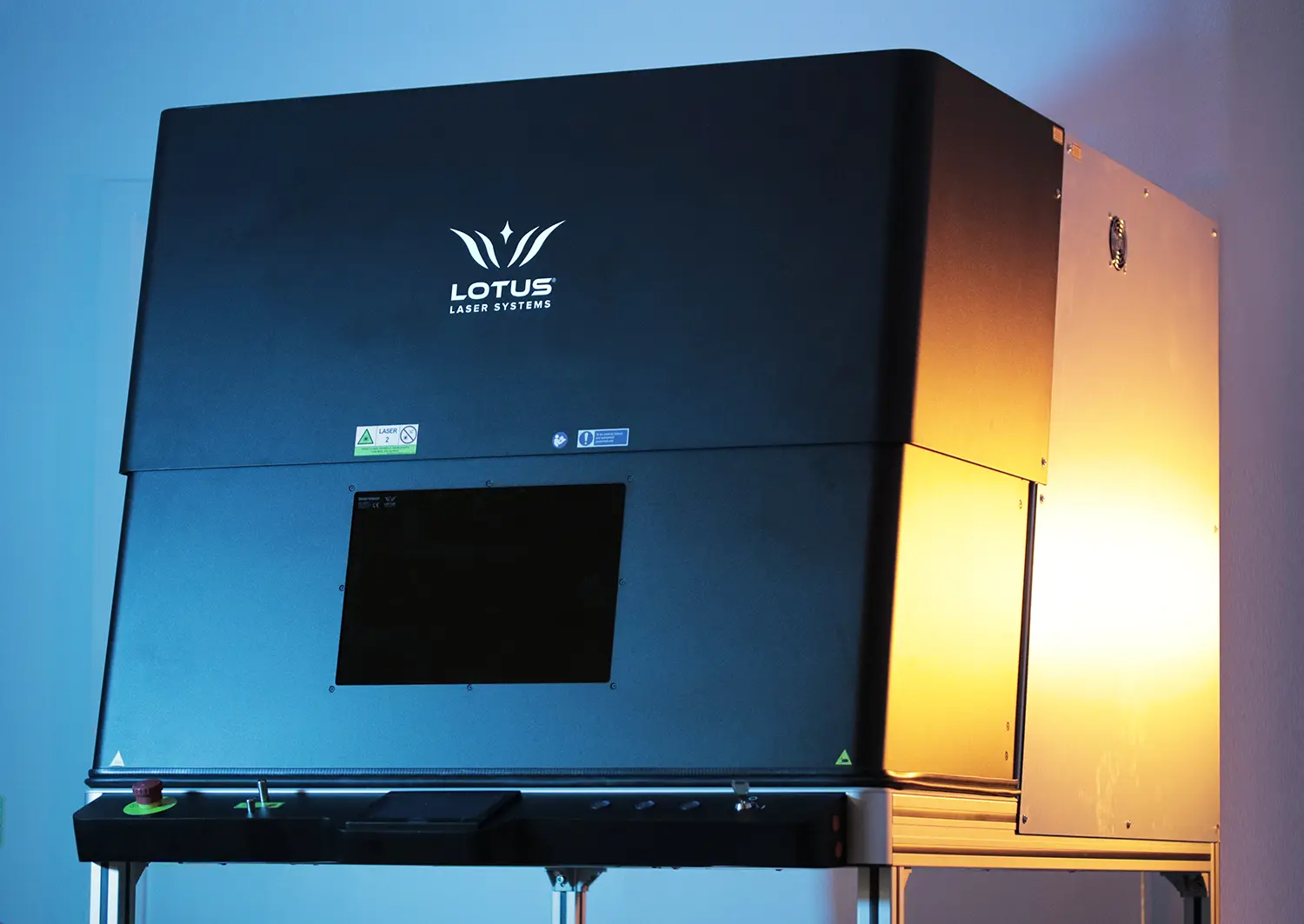

Meta-XY CO2 • Laser Part Marking Machine

•  Designed for batch coding & laser part marking
•  Handles large projects with speed and accuracy
•  Precise 3D beam delivery & powerful Galvo CO2 laser source

Power (W): 60, 80, 100
Worktable (mm): 700 x 500
Materials: Wood, Some Plastics, Textiles
Machine Pricing Talk to a Specialist

Laser Part Marking

Automation.

The Meta-XY is built for precision, speed, and efficiency. Its advanced automation features allow for seamless high-volume laser part marking with minimal operator intervention. From its expansive XY-axis table to 3D marking capabilities and compatibility with multiple laser sources, the Meta-XY delivers superior results in industrial production environments.

3D Laser Marking

Equipped with 3-axis technology, the Meta-XY effortlessly marks flat, curved, and irregular surfaces with pinpoint accuracy. This makes it the ideal laser part marking machine for industries requiring deep engraving, branding, or traceability on complex components.

60W, 80W or 100W

The Meta-XY CO2 is available with a 60W, 80W or 100W CO2 laser, making short work of any etching task, even on difficult materials.

Precision XY-Axis

The Meta-XY features a fully automated, large-format XY table, designed for batch processing and high-throughput applications. This system enables precise positioning across a wide marking area, allowing multiple parts to be processed in a single cycle without manual intervention.

What a difference 3D makes…

True 3D Engraving

Meta-XY dynamically adjusts focal depth using a high-precision 3-axis scanner, maintaining micron-level focus even on steep or recessed surfaces. Whether engraving deep branding marks or micro text, every line remains consistent and true.

*Grab the slider below to compare typical 2D engraving and Lotus 3D engraving.

3D Engraving with Lotus Lasers

Typical 2D Laser

3D Engraving with Lotus Lasers

Meta 3D Laser

WHAT CAN YOU ENGRAVE WITH A 3D CO2 LASER?

Applications & Videos

Take a look at some of our application videos below of the Meta-XY Laser Engraver at work.

Meta-XY Part Marking Machine at Filtronic

WORKING FOR BUSINESS

Filtronic – a world-leading RF manufacturer – invested in a Meta-XY to improve their chip making process

Lotus Meta-XY Custom Software

CUSTOM SOFTWARE

Our custom software makes it easy to completely automate your part marking process

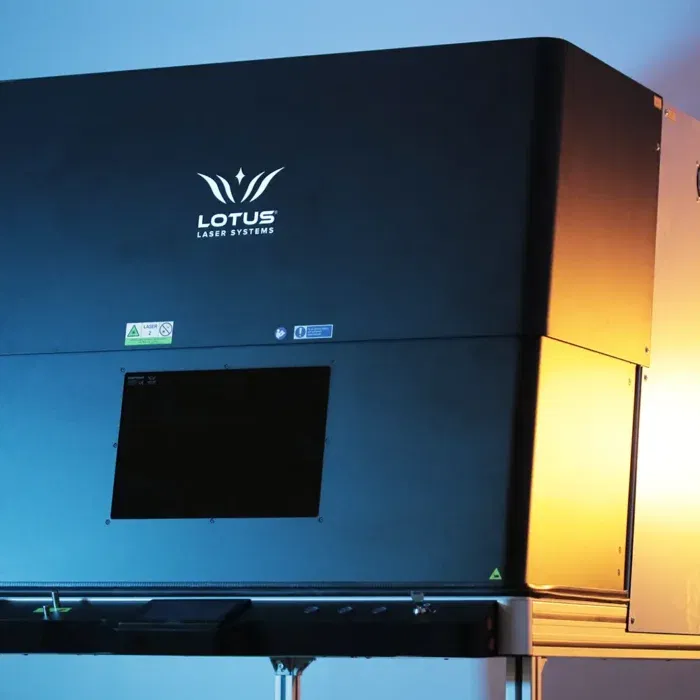

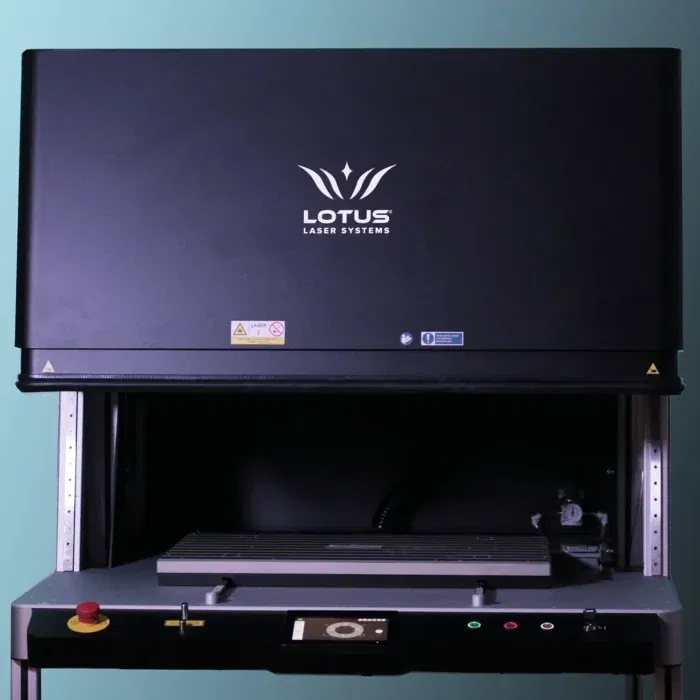

Meta-XY Batch Laser Part Marking Solution

BATCH MARKING MADE EASY

Get an insight into how capable the Meta-XY is for batch coding and marking at a huge scale

Examples

See how our CO2 laser marking & engraving machines deliver high-precision results on wood, plastics & more.

Meta-C CO2 Engraving on Wood

Clean, high contrast engraving on wood
Laser engraved leather wallet

Leather - Engrave natural materials with precision
laser cut greetings card

Paper & Card - fine details without burning
Laser etched wood

Wood - Flawless engraving with a clean finish

TIme-Saving

Features

The Meta-XY 3D CO2 is designed to speed up your production.

180° Work Area

With 180° access you have no limit on part width or length. In Class 2 (door closed), the max part size is 700mm wide x 380mm deep.

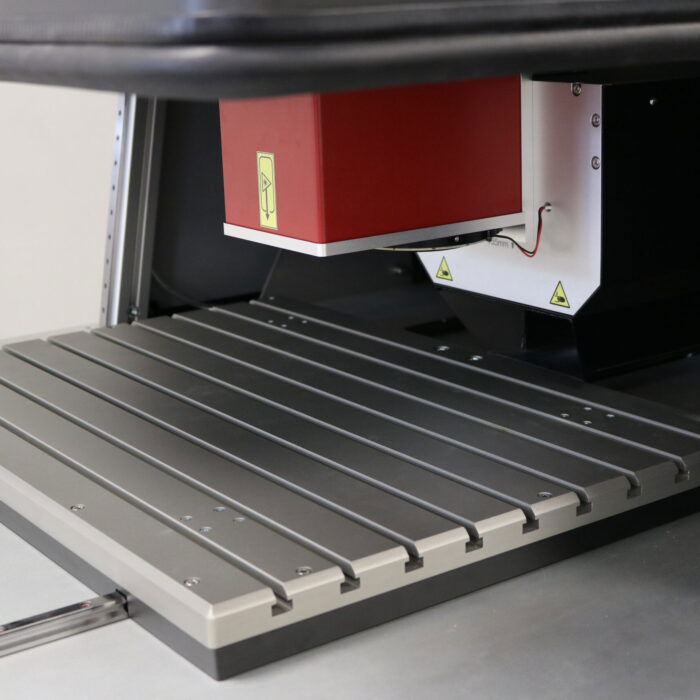

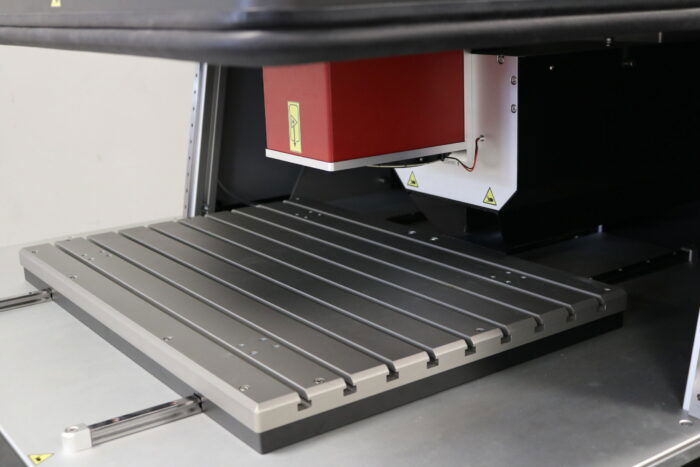

T-Slot Worktable

The precision-engineered aluminium T-slot work table allows for quick installation of jigs, fixtures, and modular add-ons. Designed for repeatability and efficiency, it ensures perfect positioning of parts for every marking cycle.

Automatic Door

Class 2 verified, safety tested, pneumatically actuated access panel. Allowing fast hands free laser engraving and marking.

Job Control HMI

The Meta-XY Fiber’s Job Control HMI provides an intuitive user interface for managing marking parameters, automation sequences, and job queues. Operators can easily configure tasks, adjust settings, and monitor operations in real time.


Industrial-Level

Durability.

Robust and versatile, the Meta-XY batch laser marking machine is built for both commercial and industrial sectors and boasts an incredibly long lifespan exceeding 15 years. Compliant with ISO9001, CE, RoHSII, and FDA regulations.

Harsh Environments

Incorporating top-of-the-range Siemens PLC electronics, each Meta-XY gets 3 full days of alignment and testing after leaving production. It’s designed to operate effortlessly in greater variations of dust, temperature and humidity than other systems.

3-10 Year Warranty

We’re so confident in our technology we back it up with some of the longest warranties in the industry. The Meta-XY batch laser marking machine comes with a 3-year warranty as standard, extendable to 10 years.

Insane Endurance

We take your business seriously, that’s why the Meta-XY batch laser marking machine is created with the longest lifespan in mind. Featuring an ergonomic pneumatic door which can withstand 100,000s cycles – you’ll struggle to find a more durable system than this.

Solid Chassis

Strong, durable and built to last. Our Meta-XY is robust in it’s makeup, made with military-grade aluminium it operates with full functionality even after knocks and heavy use.

Meta-XY batch laser marking machine

Unbeatable Upgrades.

Conveyors

Streamline production with conveyor integration, perfect for high-speed manufacturing lines requiring efficient part flow.

Rotary Systems

Achieve precise cylindrical marking with a rotary axis, ideal for engraving rings, tubes, and round components.

Custom Jigs

Quickly swap out custom jigs for different part geometries, ensuring perfect repeatability and alignment.

Hopper Systems

Automate batch processing with a hopper system, feeding parts into the marking area with precision for high-volume runs.

Collaborative Robots

Enhance automation with a cobot for seamless part handling, reducing manual workload and increasing throughput.

META-XY batch laser marking machine

Specification

The Meta-XY batch laser marking machine is one of the most feature enriched and functional laser marking workstations available today. Designed, assembled, configured and tested here in the UK, it is compliant with CE, RoHSII, ISO9001 and FDA regulations.

In production we take our time, and most importantly we don’t cut corners. By choosing high-grade components and testing rigorously, we can confidently say, at this price point, we feel there really is no other system on the market to compete with the Meta-XY batch laser marking machine.

Meta-XY UV CO2 Fiber laser engraving

In Detail

Dimensions (WDH) 1140mm x 1975mm x 1885mm
Laser Source CO2
Laser Head 3D (3-Axis)
3D Depth Of Focus (DOF) 35mm
Waveforms Variable
Accuracy 1µm (0.001mm)
Positioning Speed
 10,000mm/s
Z-axis Stroke
 400mm
Z-axis Accuracy
 ±0.02mm
DLC / Software Siemens PLC / Lotus Mark v3.0
International Warranty 3 to 10 years
Max Part Size (Door Closed) 700mm x 380mm (Class 2)
Max Part Size (Door Open) Height Restricted Only (Class 4)
Worktable
 700mm x 500mm (T-Slot Expandable)
Max Marking Area
 820mm x 620mm (contact us for detail)
Accessories Available
 Request Catalogue

How much will a solution cost?

Use the slider below to get the approximate cost of one of our systems based on the number of products you need to mark or engrave.
Parts/Products per week: 500

Did you know?

Lease equipment is 100% tax deductible, so all payments made for the equipment are written off against the company’s tax bill. This could mean a saving of 20-40% of the lease payments depending on the rate you pay.

In fact, buying equipment outright means it becomes a depreciating asset, losing value over time, going down the leasing route means this is not in your name.

Example

Machine cost £5000+VAT over 3-year term

Monthly payment of £168.85 + VAT over 36 months

Total paid over term of lease £6078.60

However...

19% tax can be reclaimed on the total lease payments over the 3 years, so a total of £1154.93

Therefore, the net cost of the lease is £6078.60 - £1154.93

Net Cost = £4923.67
