Meta-D • 3-Axis Laser Cutter & Engraver

•  Built for high volume at very high speed
•  800 x 800mm work area
•  Fitted with FLIR cameras for precision

Power (W): 200, 300, 400
Worktable (mm): 800 x 800
Materials: Wood, Card, Paper, Some Plastics, Textiles
Machine Pricing Talk to a Specialist

Meta-D

Dynamic Focus 3-Axis CO2 Laser

This CO2 Laser Machine features an innovative form of laser marking which supports a larger marking area whilst maintaining focus and outputting greater laser power.

3-Axis

Unlike our other Meta models which use 3-Axis to achieve 3D marking, the Meta-D CO2 Laser Machine uses it to increase the maximum marking area. The Meta-D is capable of marking a much larger area than other systems whilst maintaining focus.

Advanced HMI

Complete control of machine settings and laser positioning right at your fingertips, as well as being able to interchange the different work areas.

Large Work Area

800mm x 800mm maximum marking area so you can engrave large parts whilst maintaining Class 2 Safety standards.

Meta-D CO2 Laser Machine

In Action

Take a look at the speed of the Meta-D CO2 Laser Machine. Capable of marking 100 times faster than other CO2 flatbed systems and being durable enough to run for potentially decades.

It marks the next step in CO2 laser systems.

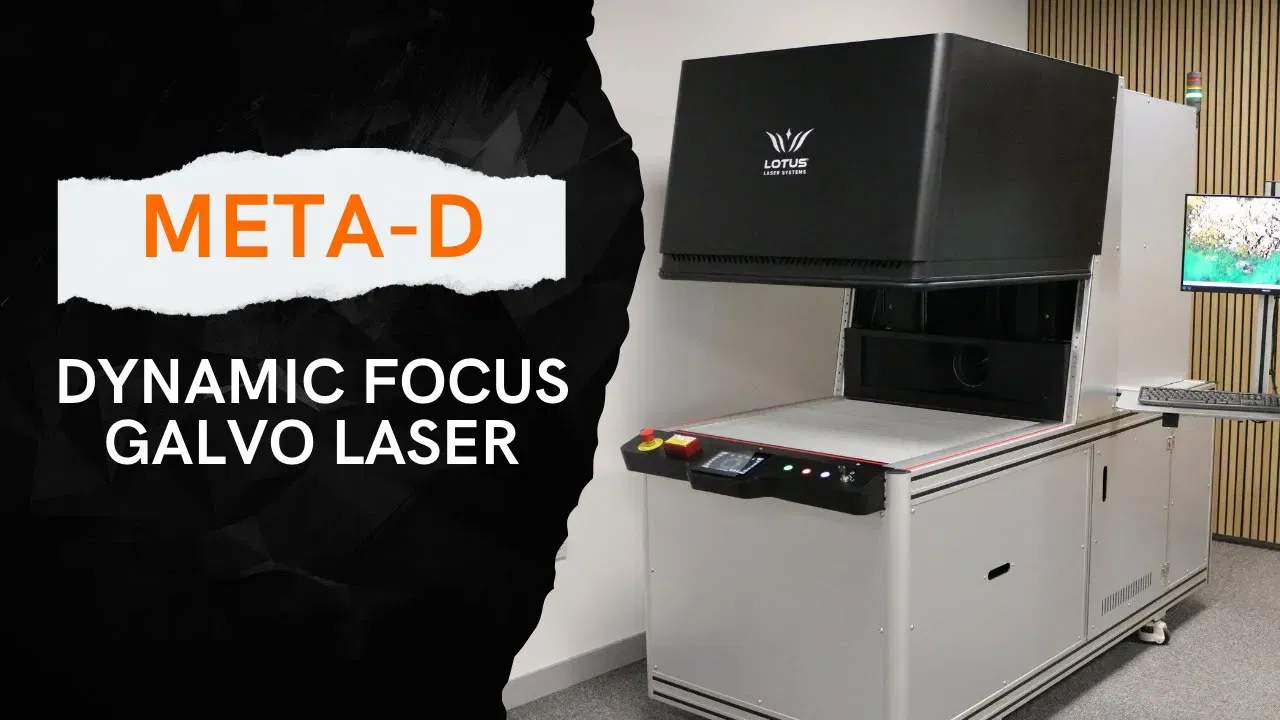

Meta-D CO2 Laser Machine

HUGE WORK AREA

See how the dynamic focus makes the Meta-d a CO2 cutting powerhouse

Good Empire interview with Lotus Laser

FAST AND POWERFUL

Good Empire have been using a Meta-D for all kinds of products, from bottles to paper packaging

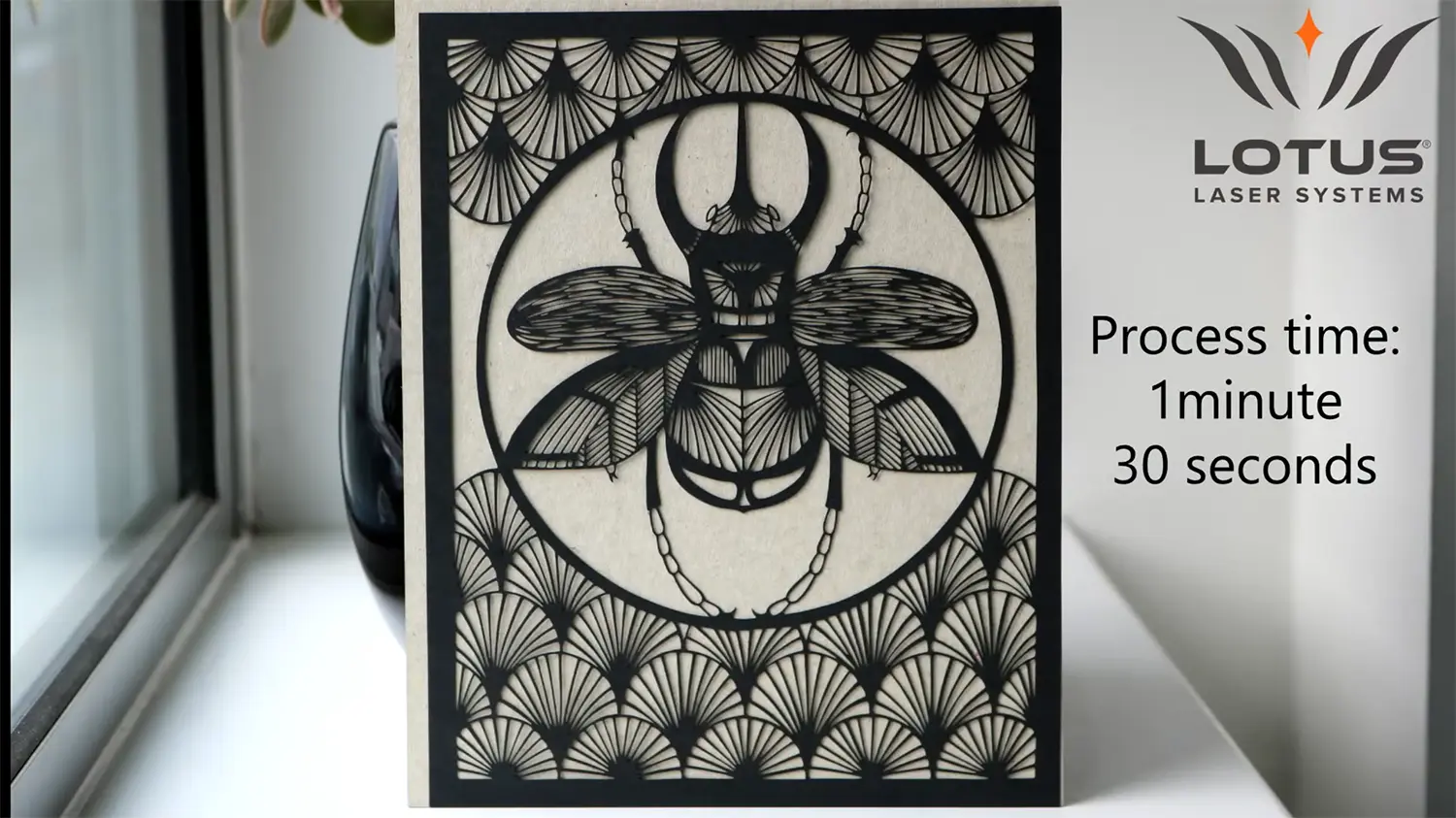

Meta-D CO2 high speed paper cutting

IDEAL FOR PAPER CUTTING

The Meta-D cuts paper extremely quickly and with incredible accuracy and precision

Material Suitability

Quickly create perfect marks on plastics, wood, card and paper materials.

Workbed Options

The Meta-D CO2 Laser Machine has multiple workbed options to select from via the HMI: Lamella Bar, Grid Bed and Wire Bed.

Industry 4.0 Software

Our next-level software enables you to set up jobs quickly and efficiently to support smart factory operations.

Artboard 16

Built in PC

Ensuring complete control of the marking process the Meta-D CO2 Laser Machine comes with a built in pc giving you full control of your engraving.

Logical

Features

Delivering what you need, when you need it; this large format CO2 laser machine boasts great features to make business a pleasure.

Industrial-Level

Durability

Robust and versatile, the Meta-D CO2 Laser Machine is built for both commercial and industrial sectors and boasts an incredibly long lifespan exceeding 15 years. Compliant with ISO9001, CE, RoHSII, and FDA regulations.

Harsh Environments

Incorporating top-of-the-range Siemens PLC electronics, each system gets 3 full days of alignment and testing after leaving production. It’s designed to operate effortlessly in greater variations of dust, temperature and humidity than other systems.

Long Warranty

We’re so confident in our technology we back it up with some of the longest warranties in the industry. The Meta-D CO2 Laser Machine comes with a 2-year warranty as standard, extendable to 5 years.

Insane Endurance

We take your business seriously, that’s why the Meta-D CO2 Laser Machine is created with the longest lifespan in mind. Featuring an ergonomic pneumatic door which can withstand 100,000s cycles – you’ll struggle to find a more durable system than this.

Solid Chassis

Strong, durable and built to last. Our Meta-D CO2 Laser Machine is robust in it’s makeup, made with military-grade aluminium it operates with full functionality even after knocks and heavy use.

Meta-D CO2 Laser Machine

Unbeatable Upgrades

Conveyor

The manufacturing process is made even easier with a 3m conveyor feed allowing for automatic marking.

Rotary

Need to mark or engrave around cylindrical items? Our tilting rotary device is just the thing.

Laser Options

Fitted our own laser sources, this isn’t just about speed; it’s about quality, longevity, and making your operations smoother than ever.

Side Windows

A practical side window allows you to keep a close eye on your creations.

Positioning Camera

Our advanced positioning camera allows you to automatically locate where you want to mark, ensuring perfect results every time.

COBOT

A collaborative robot that listens to your every command.

Meta-D Laser Etching Machine

Summary

Meta-D CO2 Laser Machine is unique to the meta line of lasers as it integrates the Dynamic Focus Galvo Laser allowing for a larger marking area whilst maintaining engraving quality. this is how the Meta-D is able to have larger marking area at 800mm x 800mm, Perfect for engraving larger parts which would not have been previously practical. Add this to the far faster marking speeds and the ability to change workbeds using the HMI and you have the perfect CO2 Laser Machine for marking, engraving, and cutting.

META-D CO2 Laser Machine

Specification

The Meta-D CO2 Laser Machine is one of our most unique laser systems, with a focus on marking larger pieces whilst maintaining high quality and safety standards.

In Detail

Dimensions (WDH) 1153mm x 2283mm x 2113mm
Laser Source 200W, 300W, or 400W 10.6μm (CO2)
Beam Delivery 3-Axis (DFGL)
Depth Of Focus (DOF) 400 to 800mm
Waveforms Variable
Accuracy 1µm (0.001mm)
Max Marking Speed
 7000mm/s
Z-axis Stroke
 470mm
Z-axis Accuracy
 ±0.02mm
DLC / Software Siemens PLC / Lotus Mark v3.0
International Warranty
Max Part Size (Door Closed) 758mm x 758mm (Class 2)
Max Part Size (Door Open)
Worktables
 Lamella Bar, Grid Bed, Wire Bed
Max Marking Area
 800mm x 800mm (contact us for detail)
Accessories Available
 Request Catalogue

How much will a solution cost?

Use the slider below to get the approximate cost of one of our systems based on the number of products you need to mark or engrave.
Parts/Products per week: 500
